Single parts f antenna-diversity for BMW 5 Series E61 LCI 530d (2010)

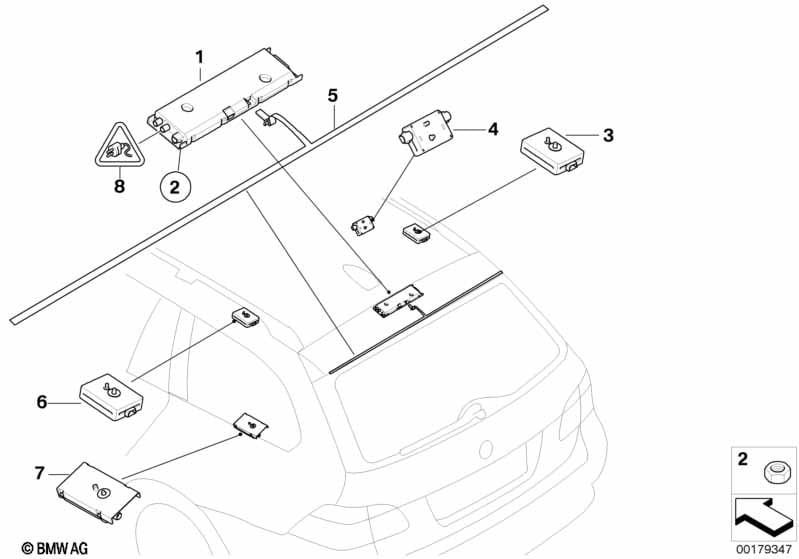

This Single parts f antenna-diversity technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Information on remote control: Basis = radio remote control 868 MHZ Japan/Korea = radio remote control 315 MHZ Low-power SA 876 = radio remote control 315 MHZ SA 874 = radio remote control 434 MHZ |
|||||||||
| 01 | Antenna amplifier Diversity | 868 MHZ | 1 | 65209183564 | Shop at ECS Tuning | |||||
| For vehicles with Radio frequency 434 MHz |
S874A=Yes |
|||||||||
| 01 | Antenna amplifier Diversity | 434 MHZ | 1 | 65209183566 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Antenna amplifier Diversity | 315 MHZ | 1 | 09/2008 | 65209166255 | Shop at ECS Tuning | ||||
| For vehicles with Radio frequency 315 MHz and National version japan |
S876A=Yes L807A=No |
|||||||||
| 01 | Antenna amplifier Diversity | 315 MHZ | 1 | 65209183563 | $278.20 | Shop at ECS Tuning | ||||
| 02 | Nut | M5 | 2 | 07147120461 | Shop at ECS Tuning | |||||
| 03 | Suppression filter | 1 | 65206953191 | $22.72 | Shop at ECS Tuning | |||||
| 04 | Trap circuit | 1 | 65246990090 | $17.86 | Shop at ECS Tuning | |||||
| 05 | Antenne AM | 1 | 65206917928 | $23.38 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with TV function and DAB tuner |
S601A=No S654A=Yes |
|||||||||
| 07 | Antenna amplifier DAB | 1 | 65209167107 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with TV function and DAB tuner |
S601A=Yes S654A=No |
|||||||||
| 07 | TV amplifier | 2 | 65209167103 | Shop at ECS Tuning | ||||||
| For vehicles with TV function and DAB tuner |
S601A=Yes S654A=Yes |
|||||||||
| 07 | Antenna amplifier DAB/TV | 1 | 65209167106 | Shop at ECS Tuning | ||||||
| 08 | Universal socket housing uncoded | 8 POL. | 1 | 61136954526 | $3.12 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal MQS | 0,5-0,75 MM²/AU | 1 | 61131393726 | $0.68 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E61 LCI 530d Single parts f antenna-diversity?
- This technical diagram illustrates the Single parts f antenna-diversity within the Audio, Navigation, Electronic Systems group for the 5 Series E61 LCI 530d produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Antenna amplifier Diversity (Part #65209183564).
- Which models use the hardware listed in this Single parts f antenna-diversity?
- The hardware and components featured in the Single parts f antenna-diversity are specific to the 5 Series E61 LCI 530d produced during 2010. These technical specifications ensure that parts like the Antenna amplifier Diversity (65209183564) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single parts f antenna-diversity assembly?
- Each item in the Single parts f antenna-diversity corresponds to the numbered list below the illustration. For the 5 Series E61 LCI 530d, you can identify the Antenna amplifier Diversity by locating its position on the schematic, which then links to the official BMW part number 65209183564 for the Audio, Navigation, Electronic Systems section.
