Antenna line VICS for BMW 3 Series E46 330d (2004)

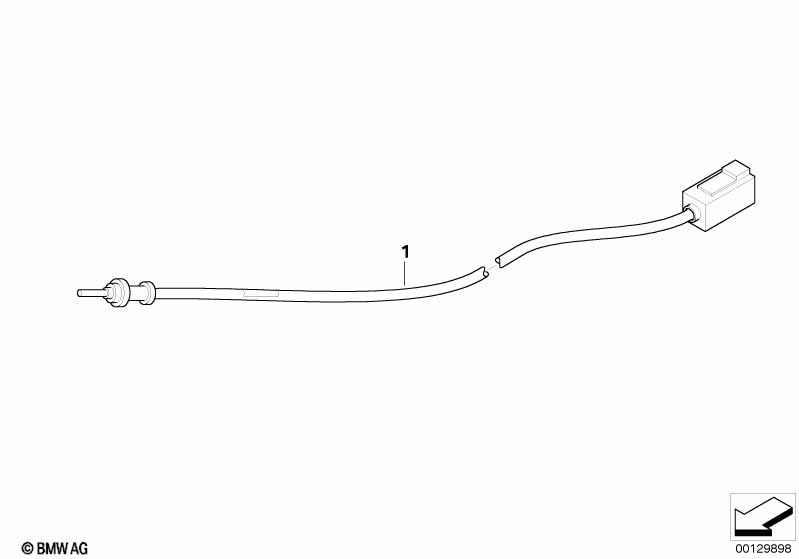

This Antenna line VICS technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version japan |
L807A=Yes |
||||||||
| 01 | Antenna line VICS | 7280MM | 1 | 09/2003 | 61126934134 | $35.20 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330d Antenna line VICS?
- This technical diagram illustrates the Antenna line VICS within the Audio, Navigation, Electronic Systems group for the 3 Series E46 330d produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Antenna line VICS (Part #61126934134).
- Which models use the hardware listed in this Antenna line VICS?
- The hardware and components featured in the Antenna line VICS are specific to the 3 Series E46 330d produced during 2004. These technical specifications ensure that parts like the Antenna line VICS (61126934134) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Antenna line VICS assembly?
- Each item in the Antenna line VICS corresponds to the numbered list below the illustration. For the 3 Series E46 330d, you can identify the Antenna line VICS by locating its position on the schematic, which then links to the official BMW part number 61126934134 for the Audio, Navigation, Electronic Systems section.
