Single parts CCC for BMW 5 Series E60 520d (2007)

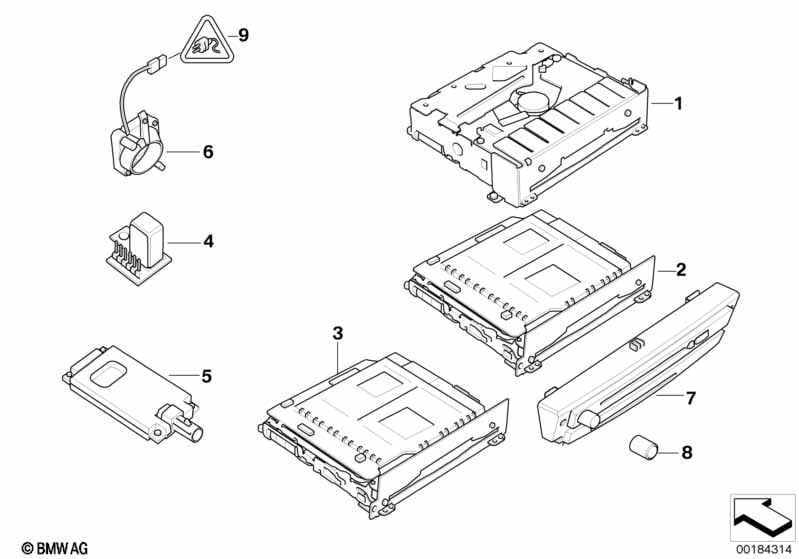

This Single parts CCC technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with On-board monitor with TV or Navigation system Professional |
S602A=Yes S609A=Yes |
||||||||
| 01 | CD player | 1 | 03/2005 | 65839182158 | $304.70 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | DVD player | 1 | 11/2008 | 65839241764 | ENDED | Shop at ECS Tuning | ||||
| 02 | DVD player | 1 | 11/2008 | 65839273195 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 03 | MD player | 1 | 03/2007 | 65836983950 | ENDED | Shop at ECS Tuning | ||||
| 05 | Hip-Modul | 1 | 09/2006 | 65839133797 | $292.42 | ENDED | Shop at ECS Tuning | |||
| 06 | Electric fan | 1 | 65836933200 | $70.35 | Shop at ECS Tuning | |||||
| 07 | Front cover CD | 1 | 03/2007 | 65836933204 | $147.65 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 07 | Front cover MD | 1 | 03/2007 | 65836933205 | $139.50 | Shop at ECS Tuning | ||||
| 09 | Universal pin terminal uncoded | 3 POL. | 1 | 61136931929 | $2.00 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Pin contact MQS with cable | 0,2- 0,5QMM | 3 | 61130005198 | $1.82 | Shop at ECS Tuning | ||||
| -- | Pin contact MQS with cable | 0,5-0,75 QMM AG | 3 | 61130070562 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
