Single parts f rear helf loudspeaker for BMW 1 Series E82 135i (2010)

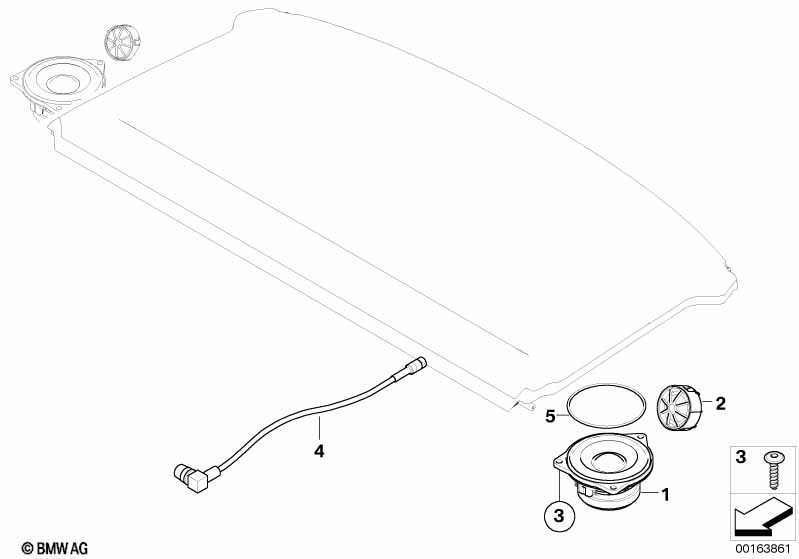

This Single parts f rear helf loudspeaker technical drawing provides a detailed breakdown of the assembly for the 1 Series E82 135i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with HiFi speaker system |
S676A=Yes |
|||||||||
| 01 | mid-range loudspeaker hifi | 2 | 65139143153 | $46.35 | Shop at ECS Tuning | |||||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system |
S677A=Yes S688A=Yes |
|||||||||
| 01 | Top-hifi MID-range loudspeaker | 2 | 65139143121 | $86.73 | Shop at ECS Tuning | |||||
| For vehicles with HiFi speaker system and HiFi System Professional DSP and Harman/Kardon Surround Sound system |
S676A=No S677A=No S688A=No |
|||||||||
| 01 | Midrange speaker, stereo/HiFi | 2 | 65139141494 | $40.38 | Shop at ECS Tuning | |||||
| For vehicles with HiFi System Professional DSP |
S677A=Yes |
|||||||||
| 02 | Top-hifi loudspeaker tweeter | 2 | 03/2010 | 65136919363 | $79.17 | Shop at ECS Tuning | ||||
| 03 | Hex head screw | ST4,8X19-U2 SW | 6 | 07119904288 | $2.05 | Shop at ECS Tuning | ||||
| 05 | Loudspeaker seal | 2 | 65139149124 | $0.73 | Shop at ECS Tuning | |||||
