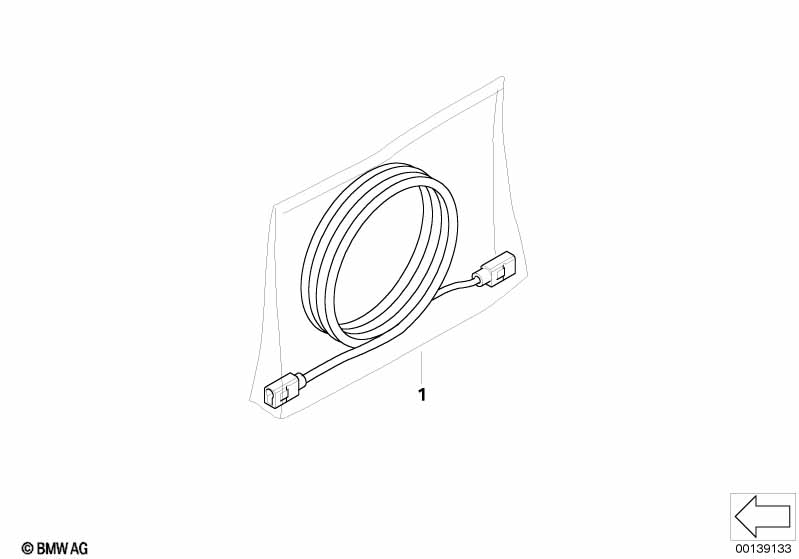

Antenna line, telephone for BMW 3 Series E46 320i (2000)
This Antenna line, telephone technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Antenna cable Ejectbox | 4255MM | 1 | 61126908374 | $39.57 | ENDED | Shop at ECS Tuning | |||
| 01 | Antenna cable, basis antenna | 4755MM | 1 | 61126912541 | $35.20 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 320i Antenna line, telephone?
- This technical diagram illustrates the Antenna line, telephone within the Audio, Navigation, Electronic Systems group for the 3 Series E46 320i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Antenna cable Ejectbox (Part #61126908374).
- Which models use the hardware listed in this Antenna line, telephone?
- The hardware and components featured in the Antenna line, telephone are specific to the 3 Series E46 320i produced during 2000. These technical specifications ensure that parts like the Antenna cable Ejectbox (61126908374) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Antenna line, telephone assembly?
- Each item in the Antenna line, telephone corresponds to the numbered list below the illustration. For the 3 Series E46 320i, you can identify the Antenna cable Ejectbox by locating its position on the schematic, which then links to the official BMW part number 61126908374 for the Audio, Navigation, Electronic Systems section.
