CD Changer/Bracket for BMW 3 Series E90 320i (2007)

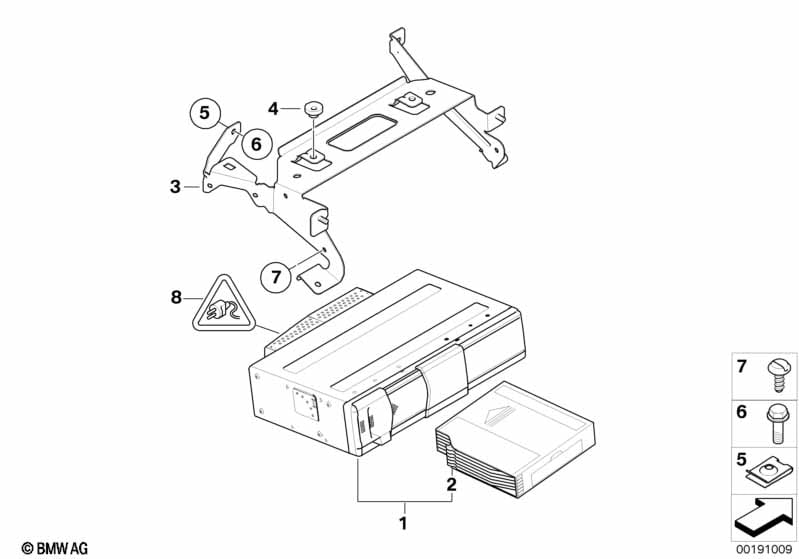

This CD Changer/Bracket technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | CD-magazine BMW 6 CD changer ai | 1 | 03/2013 | 65128364931 | $46.00 | Shop at ECS Tuning | ||||
| 03 | Bracket CD-changer | 1 | 03/2013 | 65156945073 | $17.09 | Shop at ECS Tuning | ||||
| 04 | Rubber buffer | 2 | 03/2013 | 51478144588 | $1.27 | Shop at ECS Tuning | ||||
| 05 | Body nut | M5 | 4 | 03/2013 | 61131372033 | $1.37 | Shop at ECS Tuning | |||
| 06 | Hex bolt | M5X14 | 4 | 03/2013 | 07119902932 | $0.53 | Shop at ECS Tuning | |||
| 07 | Countersunk screw | M4X6 | 4 | 03/2013 | 07119904307 | $0.09 | Shop at ECS Tuning | |||
| 08 | Covering cap | 1 | 03/2013 | 61136905200 | $3.68 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | 1 | 03/2013 | 61130005197 | $1.65 | Shop at ECS Tuning | |||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 1 | 03/2013 | 61130056960 | Shop at ECS Tuning | ||||
| -- | Socket housing | 1 | 03/2013 | 61136901844 | $3.42 | Shop at ECS Tuning | ||||
| -- | Envelope f optical waveguide | 2POL. /SCHWARZ | 1 | 03/2013 | 61138387214 | $1.83 | Shop at ECS Tuning | |||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 320i CD Changer/Bracket?
- This technical diagram illustrates the CD Changer/Bracket within the Audio, Navigation, Electronic Systems group for the 3 Series E90 320i produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the CD-magazine BMW 6 CD changer ai (Part #65128364931).
- Which models use the hardware listed in this CD Changer/Bracket?
- The hardware and components featured in the CD Changer/Bracket are specific to the 3 Series E90 320i produced during 2007. These technical specifications ensure that parts like the CD-magazine BMW 6 CD changer ai (65128364931) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the CD Changer/Bracket assembly?
- Each item in the CD Changer/Bracket corresponds to the numbered list below the illustration. For the 3 Series E90 320i, you can identify the CD-magazine BMW 6 CD changer ai by locating its position on the schematic, which then links to the official BMW part number 65128364931 for the Audio, Navigation, Electronic Systems section.
