amplifier / holder hifi system for BMW 3 Series E90 LCI 325xi (2011)

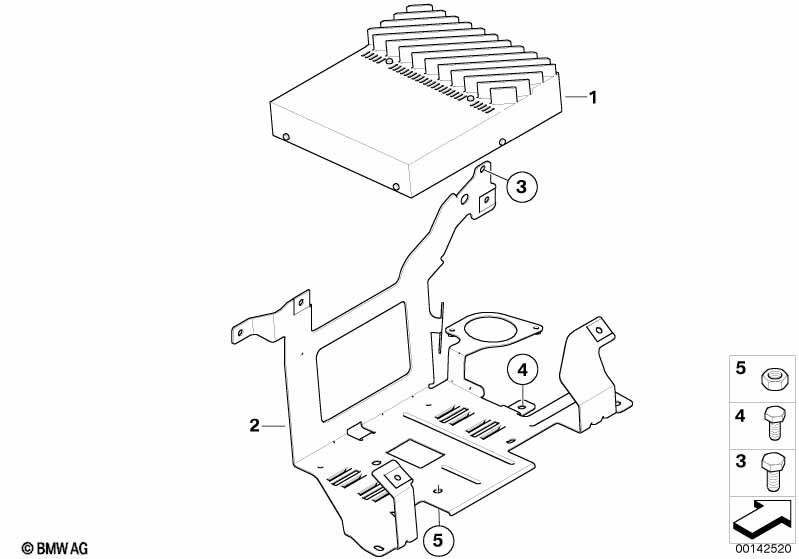

This amplifier / holder hifi system technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with HiFi speaker system |
S676A=Yes |
||||||||
| 01 | Amplifier hifi system | 1 | 09/2010 | 65122622676 | Shop at ECS Tuning | |||||
| 02 | Holder amplifier | 1 | 65156945072 | $13.07 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M5X14 | 4 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X10 | 1 | 07119903842 | $0.45 | Shop at ECS Tuning | ||||
| 05 | Hex nut with plate | AM6-8-ZNNIV SI | 2 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
