Amplifier HiFi Prof. / Harman Kardon for BMW 3 Series E90 318i (2008)

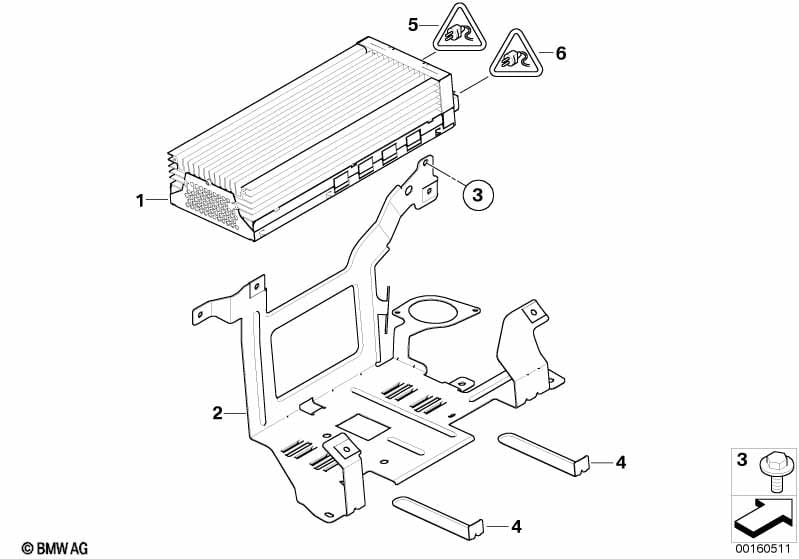

This Amplifier HiFi Prof. / Harman Kardon technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with HiFi System Professional DSP |
S677A=Yes |
|||||||||
| 01 | Top-hifi system amplifier | 1 | 03/2010 | 65129181743 | $1232.18 | Shop at ECS Tuning | ||||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system |
S677A=Yes S688A=Yes |
|||||||||
| 02 | Holder amplifier | 1 | 65156945072 | $13.07 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M5X14 | 4 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 04 | Locking bracket | 2 | 65126908277 | $1.92 | Shop at ECS Tuning | |||||
| For vehicles with HiFi System Professional DSP |
S677A=Yes |
|||||||||
| 05 | Socket housing | 20 POLIG | 1 | 03/2010 | 61131383502 | $7.28 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 ELA with cable | 1,0-2,5 MM² | 4 | 03/2010 | 61130007571 | $2.65 | Shop at ECS Tuning | |||
| -- | Terminal socket 2.5 | 0.5-1.0 MM² | 4 | 03/2010 | 61131392302 | $0.42 | Shop at ECS Tuning | |||
| 06 | Socket housing | 1 | 03/2010 | 61136901844 | $3.42 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | 1 | 03/2010 | 61130005197 | $1.65 | Shop at ECS Tuning | |||
| -- | Covering cap | 1 | 03/2010 | 61136905200 | $3.68 | Shop at ECS Tuning | ||||
| -- | Envelope f optical waveguide | 2POL. /SCHWARZ | 1 | 03/2010 | 61138387214 | $1.83 | Shop at ECS Tuning | |||
