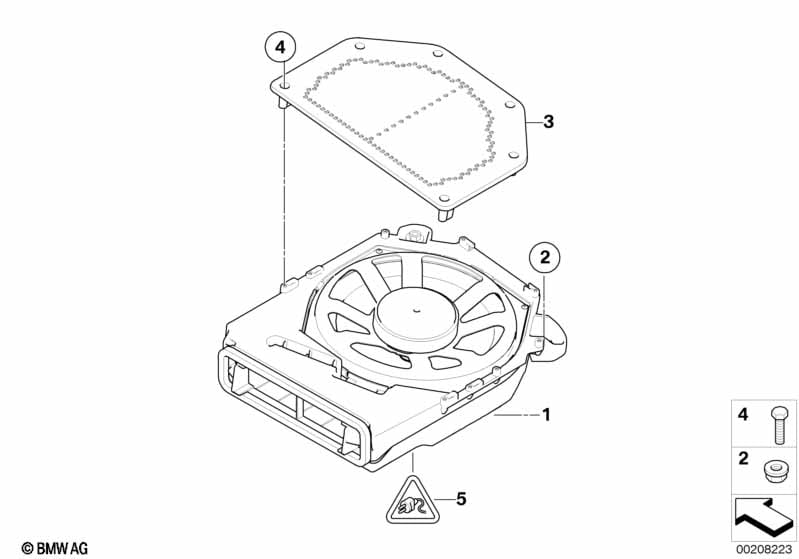

Components central bass for BMW 3 Series E90 325i (2008)
This Components central bass technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Central bass, left | STEREO-SYSTEM | 1 | 65139204785 | $143.70 | Shop at ECS Tuning | ||||
| 01 | Central bass, right | STEREO-SYSTEM | 1 | 65139204786 | $143.70 | Shop at ECS Tuning | ||||
| For vehicles with Individual audio system |
S752A=Yes |
|||||||||
| 01 | Central bass, left / Indi. Audio System | 1 | 09/2007 | 65137838907 | $372.10 | +core | Shop at ECS Tuning | |||
| 01 | Central bass, right / Indi. Audio System | 1 | 09/2007 | 65137838908 | $372.10 | Shop at ECS Tuning | ||||
| For vehicles with HiFi speaker system |
S676A=Yes |
|||||||||
| 01 | Central bass, left | HIFI-SYSTEM | 1 | 65139143143 | $192.20 | Shop at ECS Tuning | ||||
| 01 | Central bass, right | HIFI-SYSTEM | 1 | 65139143144 | $192.20 | Shop at ECS Tuning | ||||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system |
S677A=Yes S688A=Yes |
|||||||||
| 01 | Central bass, left | TOP-HIFI-SYSTEM | 1 | 65139143135 | $399.32 | Shop at ECS Tuning | ||||
| 01 | Central bass, right | TOP-HIFI-SYSTEM | 1 | 65139143136 | $399.32 | Shop at ECS Tuning | ||||
| 02 | Hex nut | BM6-8-ZNNIV SI | 4 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 02 | Hex nut with plate | M6 | 4 | 01/2007 | 41127028600 | $0.33 | Shop at ECS Tuning | |||
| 03 | Central woofer trim | 2 | 65136925337 | $17.85 | Shop at ECS Tuning | |||||
| 04 | Screw | P-TS4X25 | 12 | 07129905172 | $0.20 | Shop at ECS Tuning | ||||
| For vehicles with HiFi speaker system |
S676A=Yes |
|||||||||
| 05 | Universal socket housing uncoded | 4 POL. | 2 | 10/2013 | 61136984750 | $5.03 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Socket contact ELO-Power 2,8x0,63 | 0,5-1,0 MM² | X | 10/2013 | 61138364836 | $0.35 | Shop at ECS Tuning | |||
| -- | Socket contact ELO-Power 2,8x0,63 | 1,0- 2,5 MM² SN | X | 10/2013 | 61138364838 | $0.62 | Shop at ECS Tuning | |||
| 05 | Rep. kit for socket housing | 4 POL. | 2 | 61132359996 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Socket contact ELO-Power 2,8x0,63 | 0,5-1,0 MM² | X | 61138364836 | $0.35 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 1,0- 2,5 MM² SN | X | 61138364838 | $0.62 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
