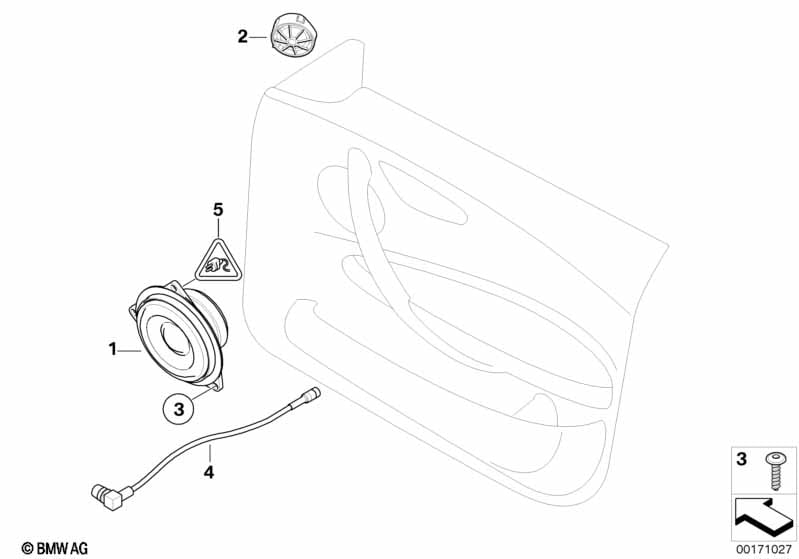

Single parts f front door loudspeaker for BMW 3 Series E90 LCI 318i (2011)
This Single parts f front door loudspeaker technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Midrange speaker, stereo | 2 | 12/2005 | 65139143232 | $53.18 | Shop at ECS Tuning | ||||
| For vehicles with HiFi speaker system |
S676A=Yes |
|||||||||
| 01 | mid-range loudspeaker hifi | 2 | 65139143147 | $46.35 | Shop at ECS Tuning | |||||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system |
S677A=Yes S688A=Yes |
|||||||||
| 01 | Top-hifi MID-range loudspeaker | 2 | 65139142512 | $86.73 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system |
S688A=Yes |
|||||||||
| 02 | Harman Kardon tweeter | 2 | 03/2010 | 65139217909 | Shop at ECS Tuning | |||||
| For vehicles with HiFi speaker system |
S676A=Yes |
|||||||||
| 02 | Hifi Tweeter | 2 | 65136964012 | $46.35 | Shop at ECS Tuning | |||||
| 03 | Hex nut | M5 | 6 | 07129906048 | $0.73 | Shop at ECS Tuning | ||||
| For vehicles with HiFi speaker system |
S676A=Yes |
|||||||||
| 05 | Universal socket housing uncoded | 2 POL. | 2 | 05/2012 | 61136925634 | $1.65 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Pin contact MQS with cable | 0,2- 0,5QMM | 4 | 05/2012 | 61130005198 | $1.82 | Shop at ECS Tuning | |||
| -- | Pin contact MQS with cable | 0,5-0,75 QMM AG | 4 | 05/2012 | 61130070562 | Shop at ECS Tuning | ||||
| 05 | Rep. kit for socket housing | 2 POL. | 2 | 61132360043 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Pin contact MQS with cable | 0,2- 0,5QMM | 4 | 61130005198 | $1.82 | Shop at ECS Tuning | ||||
| -- | Pin contact MQS with cable | 0,5-0,75 QMM AG | 4 | 61130070562 | Shop at ECS Tuning | |||||
