Single parts antenna for BMW 3 Series E90 LCI 325xi (2011)

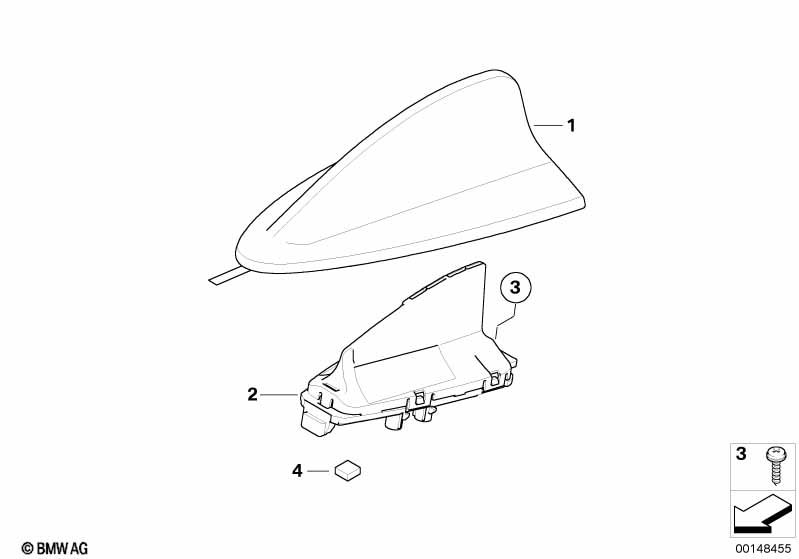

This Single parts antenna technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Mounting roof antenna with glass adhesive! |
|||||||||
| 01 | Empty housing for roof antenna, primed | 1 | 65206955555 | $54.55 | Shop at ECS Tuning | |||||
| 01 | Empty housing for roof antenna, painted | CODE-UNI/MET. | 1 | 65200397539 | $152.35 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Navigation system Business and Navigation system Professional and Preparation, mobile phone, Business and DAB tuner |
S606A=Yes S609A=No S633A=No S654A=Yes |
|||||||||
| 02 | Roof antenna | 1 | 65206959146 | +core | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Preparation, mobile phone, Business and DAB tuner |
S606A=No S609A=Yes S633A=No S654A=Yes |
|||||||||
| 02 | Roof antenna | 1 | 65206959146 | +core | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Preparation, mobile phone, Business and DAB tuner |
S606A=No S609A=No S633A=No S654A=Yes |
|||||||||
| 02 | Roof antenna | 1 | 65206959146 | +core | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Preparation, mobile phone, Business and DAB tuner |
S606A=Yes S609A=No S633A=Yes S654A=Yes |
|||||||||
| 02 | Roof antenna | 1 | 65206959146 | +core | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Preparation, mobile phone, Business and DAB tuner |
S606A=No S609A=Yes S633A=Yes S654A=Yes |
|||||||||
| 02 | Roof antenna | 1 | 65206959146 | +core | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Preparation, mobile phone, Business and DAB tuner |
S606A=No S609A=No S633A=Yes S654A=Yes |
|||||||||
| 02 | Roof antenna | 1 | 65206959146 | +core | Shop at ECS Tuning | |||||
| For vehicles with Preparation f mobile phone w Bluetooth and Prep. mobile phone USA Universal and Navigation system Business and Navigation system Professional and DAB tuner |
S644A=Yes S641A=No S606A=No S609A=No S654A=No |
|||||||||
| 02 | Roof antenna | 1 | 65209226893 | +core | Shop at ECS Tuning | |||||
| For vehicles with Preparation f mobile phone w Bluetooth and Prep. mobile phone USA Universal and Navigation system Business and Navigation system Professional and DAB tuner |
S644A=No S641A=Yes S606A=No S609A=No S654A=No |
|||||||||
| 02 | Roof antenna | 1 | 65209226893 | +core | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Preparation, mobile phone, Business and Preparation f tel.installation universal and Preparation f teleph.installation Japan and DAB tuner |
S606A=Yes S609A=No S633A=Yes S640A=No S646A=No S654A=No |
|||||||||
| 02 | Roof antenna | 1 | 65209226896 | +core | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Preparation, mobile phone, Business and Preparation f tel.installation universal and Preparation f teleph.installation Japan and DAB tuner |
S606A=Yes S609A=No S633A=No S640A=Yes S646A=No S654A=No |
|||||||||
| 02 | Roof antenna | 1 | 65209226896 | +core | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Preparation, mobile phone, Business and Preparation f tel.installation universal and Preparation f teleph.installation Japan and DAB tuner |
S606A=Yes S609A=No S633A=No S640A=No S646A=Yes S654A=No |
|||||||||
| 02 | Roof antenna | 1 | 65209226896 | +core | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Preparation, mobile phone, Business and Preparation f tel.installation universal and Preparation f teleph.installation Japan and DAB tuner |
S606A=No S609A=Yes S633A=Yes S640A=No S646A=No S654A=No |
|||||||||
| 02 | Roof antenna | 1 | 65209226896 | +core | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Preparation, mobile phone, Business and Preparation f tel.installation universal and Preparation f teleph.installation Japan and DAB tuner |
S606A=No S609A=Yes S633A=No S640A=Yes S646A=No S654A=No |
|||||||||
| 02 | Roof antenna | 1 | 65209226896 | +core | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Preparation, mobile phone, Business and Preparation f tel.installation universal and Preparation f teleph.installation Japan and DAB tuner |
S606A=No S609A=Yes S633A=No S640A=No S646A=Yes S654A=No |
|||||||||
| 02 | Roof antenna | 1 | 65209226896 | +core | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Preparation, mobile phone, Business and Preparation f tel.installation universal and Preparation f teleph.installation Japan and DAB tuner |
S606A=No S609A=No S633A=Yes S640A=No S646A=No S654A=No |
|||||||||
| 02 | Roof antenna | 1 | 65209226896 | +core | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Preparation, mobile phone, Business and Preparation f tel.installation universal and Preparation f teleph.installation Japan and DAB tuner |
S606A=No S609A=No S633A=No S640A=Yes S646A=No S654A=No |
|||||||||
| 02 | Roof antenna | 1 | 65209226896 | +core | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Preparation, mobile phone, Business and Preparation f tel.installation universal and Preparation f teleph.installation Japan and DAB tuner |
S606A=No S609A=No S633A=No S640A=No S646A=Yes S654A=No |
|||||||||
| 02 | Roof antenna | 1 | 65209226896 | +core | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Car telephone Professional and Preparation f mobile phone w Bluetooth and Preparation, mobile phone, Business and Preparation f tel.installation universal and DAB tuner |
S606A=Yes S609A=No S638A=Yes S644A=No S633A=No S640A=No S654A=No |
|||||||||
| 02 | Roof antenna | 1 | 65209226895 | +core | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Car telephone Professional and Preparation f mobile phone w Bluetooth and Preparation, mobile phone, Business and Preparation f tel.installation universal and DAB tuner |
S606A=Yes S609A=No S638A=No S644A=Yes S633A=No S640A=No S654A=No |
|||||||||
| 02 | Roof antenna | 1 | 65209226895 | +core | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Car telephone Professional and Preparation f mobile phone w Bluetooth and Preparation, mobile phone, Business and Preparation f tel.installation universal and DAB tuner |
S606A=Yes S609A=No S638A=No S644A=No S633A=No S640A=No S654A=No |
|||||||||
| 02 | Roof antenna | 1 | 65209226895 | +core | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Car telephone Professional and Preparation f mobile phone w Bluetooth and Preparation, mobile phone, Business and Preparation f tel.installation universal and DAB tuner |
S606A=No S609A=Yes S638A=Yes S644A=No S633A=No S640A=No S654A=No |
|||||||||
| 02 | Roof antenna | 1 | 65209226895 | +core | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Car telephone Professional and Preparation f mobile phone w Bluetooth and Preparation, mobile phone, Business and Preparation f tel.installation universal and DAB tuner |
S606A=No S609A=Yes S638A=No S644A=Yes S633A=No S640A=No S654A=No |
|||||||||
| 02 | Roof antenna | 1 | 65209226895 | +core | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Car telephone Professional and Preparation f mobile phone w Bluetooth and Preparation, mobile phone, Business and Preparation f tel.installation universal and DAB tuner |
S606A=No S609A=Yes S638A=No S644A=No S633A=No S640A=No S654A=No |
|||||||||
| 02 | Roof antenna | 1 | 65209226895 | +core | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Car telephone Professional and Preparation f mobile phone w Bluetooth and Preparation, mobile phone, Business and Preparation f tel.installation universal and DAB tuner |
S606A=No S609A=No S638A=Yes S644A=No S633A=No S640A=No S654A=No |
|||||||||
| 02 | Roof antenna | 1 | 65209226895 | +core | Shop at ECS Tuning | |||||
| 03 | Sheet metal screw | ISA M5X12 | 1 | 07149158177 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Spacer, roof antenna | 3 | 65206977507 | $0.18 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
