Video module/TV module for BMW 3 Series E91 LCI 320i (2012)

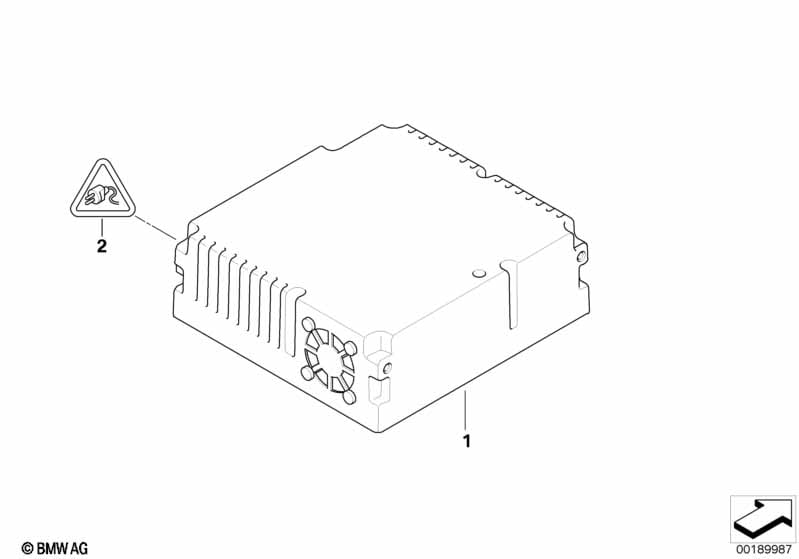

This Video module/TV module technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version Korea |
L802A=Yes |
|||||||||
| 01 | TV module | DVB-T | 1 | 09/2009 | 07/2012 | 65509240643 | Shop at ECS Tuning | |||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 01 | TV module | DTMB | 1 | 09/2010 | 65509273513 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | TV module | ISDB-T | 1 | 09/2009 | 07/2012 | 65509240645 | ENDED | Shop at ECS Tuning | ||
| For vehicles with TV function and National version China and National version Korea and National version japan and On-board monitor with TV |
S601A=Yes L8AAA=No L802A=No L807A=No S602A=No |
|||||||||
| 01 | TV module | DVB-T | 1 | 09/2009 | 07/2012 | 65509240643 | Shop at ECS Tuning | |||
| For vehicles with TV function and National version China and National version Korea and National version japan and On-board monitor with TV |
S601A=No L8AAA=No L802A=No L807A=No S602A=Yes |
|||||||||
| 01 | TV module | DVB-T | 1 | 09/2009 | 07/2012 | 65509240643 | Shop at ECS Tuning | |||
| 02 | Socket housing | 20 POL. | 1 | 61136901848 | $3.20 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Covering cap | 1 | 61136905196 | $3.92 | Shop at ECS Tuning | |||||
| -- | Envelope f optical waveguide | 2POL. /SCHWARZ | 1 | 61138387214 | $1.83 | Shop at ECS Tuning | ||||
