Bracket for video module for BMW 3 Series E90 LCI 330i (2011)

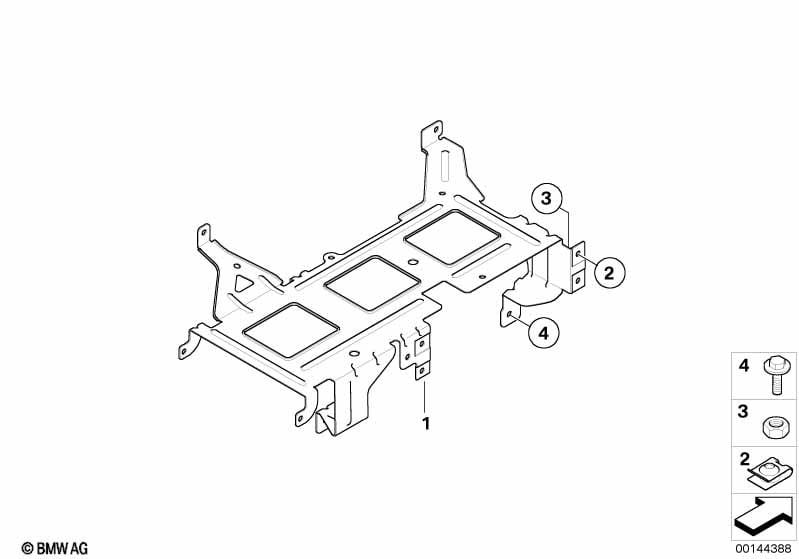

This Bracket for video module technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with TV function and On-board monitor with TV |
S601A=No S602A=No |
|||||||||
| 01 | Bracket for video module | 1 | 65156945074 | $13.92 | Shop at ECS Tuning | |||||
| For vehicles with TV function or On-board monitor with TV |
S601A=Yes S602A=Yes |
|||||||||
| 01 | Bracket for TV module | 1 | 09/2009 | 65159176373 | +core | Shop at ECS Tuning | ||||
| 02 | Body nut | M5 | 2 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| 03 | Hex nut | M5 | 2 | 07129906048 | $0.73 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M5X14 | 2 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
