On-board monitor for BMW 3 Series E93 LCI 320i (2013)

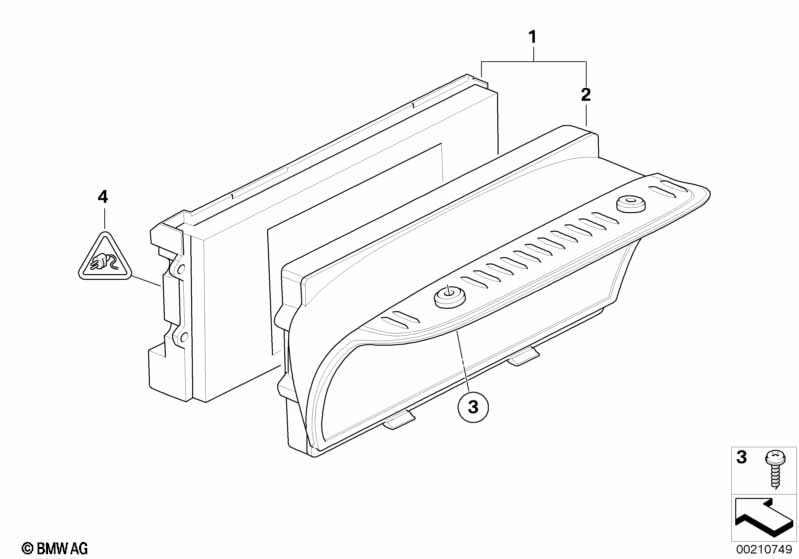

This On-board monitor technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Navigation system Business or Radio driver circuit, M Drive |
S606A=Yes S8TAA=Yes |
|||||||||
| 01 | RP REMAN on-board monitor, 6.5" | HIGH RESOLUTION | 1 | 09/2009 | 65829224348 | ENDED | Shop at ECS Tuning | |||
| For vehicles with TV function or On-board monitor with TV or Navigation system Professional |
S601A=Yes S602A=Yes S609A=Yes |
|||||||||
| 01 | RP REMAN on-board monitor, 8.8" | HIGH RESOLUTION | 1 | 09/2008 | 65829224346 | $1828.14 | Shop at ECS Tuning | |||
| 01 | RP on-board monitor, 8.8" | HIGH RESOLUTION | 1 | 09/2009 | 65829211969 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and TV function and On-board monitor with TV and Navigation system Professional |
L807A=Yes S601A=Yes S602A=No S609A=Yes |
|||||||||
| 01 | RP REMAN on-board monitor, 8.8" | HR JAPAN | 1 | 09/2009 | 65829224347 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and TV function and On-board monitor with TV and Navigation system Professional |
L807A=Yes S601A=Yes S602A=No S609A=No |
|||||||||
| 01 | RP REMAN on-board monitor, 8.8" | HR JAPAN | 1 | 09/2009 | 65829224347 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and TV function and On-board monitor with TV and Navigation system Professional |
L807A=Yes S601A=No S602A=Yes S609A=No |
|||||||||
| 01 | RP REMAN on-board monitor, 8.8" | HR JAPAN | 1 | 09/2009 | 65829224347 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and TV function and On-board monitor with TV and Navigation system Professional |
L807A=Yes S601A=No S602A=No S609A=Yes |
|||||||||
| 01 | RP REMAN on-board monitor, 8.8" | HR JAPAN | 1 | 09/2009 | 65829224347 | Shop at ECS Tuning | ||||
| For vehicles with Navigation system Business |
S606A=Yes |
|||||||||
| 02 | Trim cover, onboard monitor 6.5" | 1 | 09/2009 | 65829226387 | Shop at ECS Tuning | |||||
| For vehicles with On-board monitor with TV or Navigation system Professional |
S602A=Yes S609A=Yes |
|||||||||
| 02 | Cover, onboard monitor 8.8" | 1 | 09/2009 | 65829226386 | Shop at ECS Tuning | |||||
| 03 | Fillister head self-tapping screw | 2 | 07147133553 | $0.16 | Shop at ECS Tuning | |||||
| 04 | Universal socket housing uncoded | 8 POL. | 1 | 09/2009 | 61136954526 | $3.12 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Terminal socket MQS ELA | 0.2-0.5 MM² SN | X | 09/2009 | 61131393704 | $0.23 | Shop at ECS Tuning | |||
| -- | Terminal socket MQS ELA | 0,5-0,75 MM² AG | 12 | 09/2009 | 61136931880 | Shop at ECS Tuning | ||||
