CCC md/CD for BMW 3 Series E90 320d (2007)

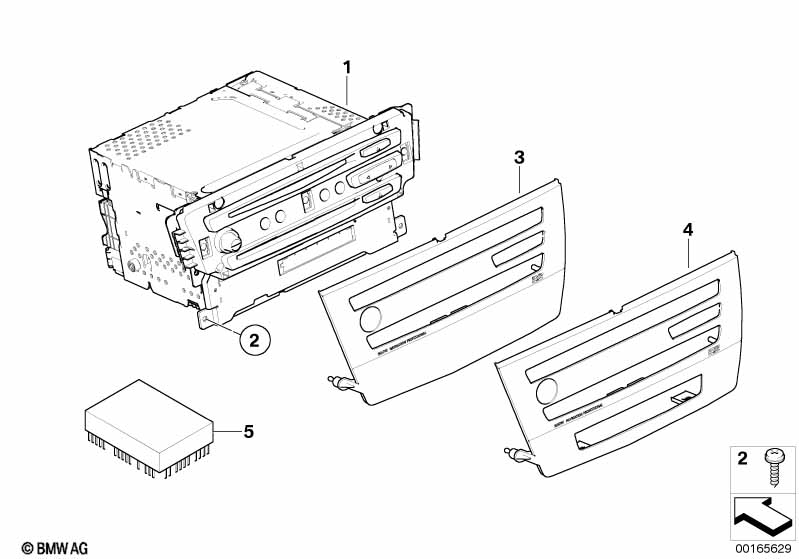

This CCC md/CD technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice! The system automatically requests the repair enable codes during the programming routine. As an alternative, it is possible to request the enable codes directly by selecting 'Sweeping Technology' in the 'FSC repair information request' menu at the ASAP Portal. A t t e n t i o n ! The defective used part must be forwarded through the exchange part return loop. It is essential to observe PARTS_051_09_14 product information bulletin! Attention! In the event that the head unit is stolen, it is necessary to consult with the insurance company to determine whether an exchange part may be installed and whether the associated flat rate deposit may be applied . If the insurance demands that a new part must be used, then the corresponding part number must be taken from the EPC . For vehicles with National version japan |
L807A=Yes |
||||||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | RP REMAN CCC, MD | 1 | 03/2007 | 03/2008 | 65839150963 | Shop at ECS Tuning | ||||
| 02 | Fillister head self-tapping screw | ST4,2X16-U1- SW | 4 | 09/2008 | 07119903793 | $0.38 | Shop at ECS Tuning | |||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 05 | Graphic card | 1 | 03/2008 | 65839174623 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
