Single parts f rear door loudspeaker for BMW 3 Series E91 LCI 320xd (2010)

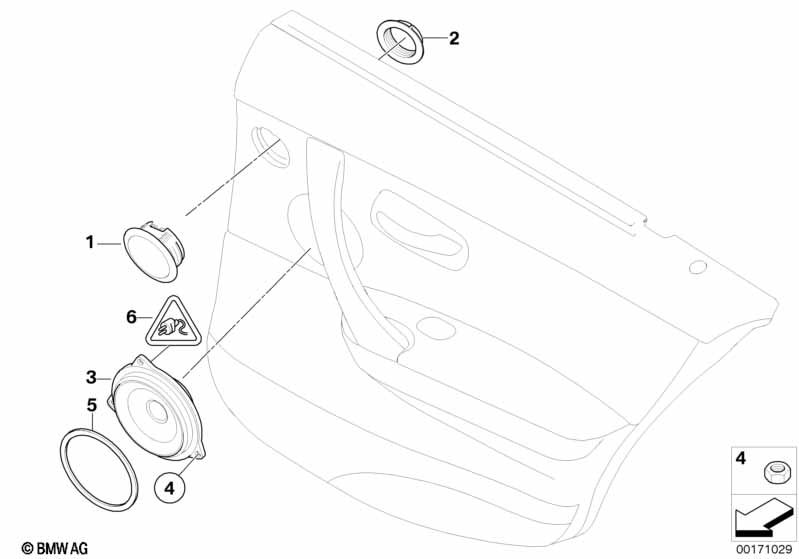

This Single parts f rear door loudspeaker technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 320xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with HiFi System Professional DSP and Black |
S677A=Yes SW=Yes |
|||||||||
| 01 | Top-hifi loudspeaker tweeter | SCHWARZ | 2 | 03/2010 | 65136942462 | $79.17 | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP and cream-beige |
S677A=Yes GE=Yes |
|||||||||
| 01 | Top-hifi loudspeaker tweeter | CREAMBEIGE | 2 | 03/2010 | 65136957822 | $79.17 | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP and Cloth "Amaretta Reflex" |
S677A=Yes AD=Yes |
|||||||||
| 01 | Top-hifi loudspeaker tweeter | GRAU60 | 2 | 03/2010 | 65136942464 | $79.17 | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP and beige |
S677A=Yes B4=Yes |
|||||||||
| 01 | Top-hifi loudspeaker tweeter | SAV.BEIGE | 2 | 03/2010 | 65136942472 | $79.17 | ENDED | Shop at ECS Tuning | ||
| 02 | Tweeter threaded ring | 2 | 65138360689 | $6.18 | Shop at ECS Tuning | |||||
| 03 | Midrange speaker, stereo | 2 | 65139143231 | $39.68 | Shop at ECS Tuning | |||||
| For vehicles with HiFi speaker system |
S676A=Yes |
|||||||||
| 03 | mid-range loudspeaker hifi | 2 | 65139143147 | $46.35 | Shop at ECS Tuning | |||||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system |
S677A=Yes S688A=Yes |
|||||||||
| 03 | Top-hifi MID-range loudspeaker | 2 | 65139142512 | $86.73 | Shop at ECS Tuning | |||||
| 04 | Hex nut | M5 | 6 | 07129906048 | $0.73 | Shop at ECS Tuning | ||||
| 05 | Damping ring for door loudspeaker | 2 | 65134163860 | $0.75 | Shop at ECS Tuning | |||||
| For vehicles with HiFi speaker system |
S676A=Yes |
|||||||||
| 06 | Universal socket housing uncoded | 2 POL. | 2 | 05/2012 | 61136925634 | $1.65 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Pin contact MQS with cable | 0,2- 0,5QMM | 4 | 05/2012 | 61130005198 | $1.82 | Shop at ECS Tuning | |||
| -- | Pin contact MQS with cable | 0,5-0,75 QMM AG | 4 | 05/2012 | 61130070562 | Shop at ECS Tuning | ||||
| 06 | Rep. kit for socket housing | 2 POL. | 2 | 61132360043 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Pin contact MQS with cable | 0,2- 0,5QMM | 4 | 61130005198 | $1.82 | Shop at ECS Tuning | ||||
| -- | Pin contact MQS with cable | 0,5-0,75 QMM AG | 4 | 61130070562 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
