CD Changer/Bracket for BMW 3 Series E91 LCI 316i (2012)

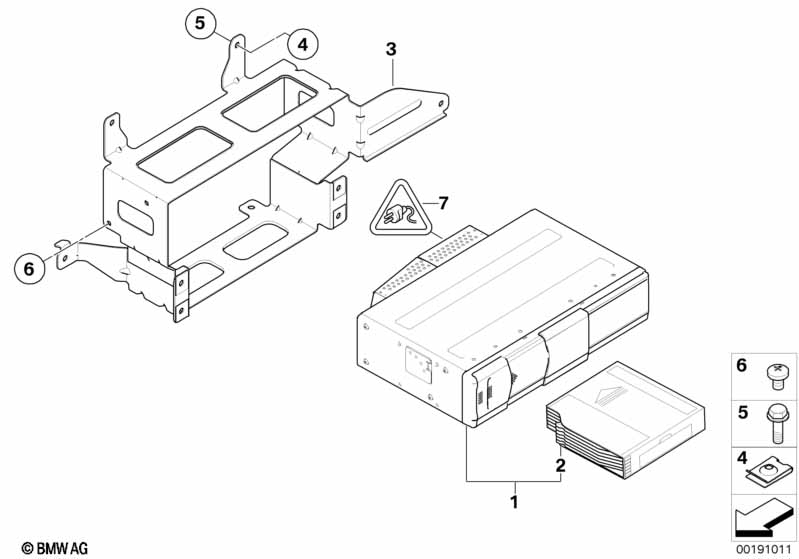

This CD Changer/Bracket technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | CD-magazine BMW 6 CD changer ai | 1 | 65128364931 | $46.00 | Shop at ECS Tuning | |||||
| 03 | Bracket CD-changer | 1 | 65156945075 | $19.44 | Shop at ECS Tuning | |||||
| 04 | Body nut | M5 | 4 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M5X14 | 4 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 06 | Countersunk screw | M4X6 | 4 | 07119904307 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Covering cap | 1 | 61136905200 | $3.68 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | 1 | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 1 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Socket housing | 1 | 61136901844 | $3.42 | Shop at ECS Tuning | |||||
| -- | Envelope f optical waveguide | 2POL. /SCHWARZ | 1 | 61138387214 | $1.83 | Shop at ECS Tuning | ||||
