Loudspeaker components for headlining for BMW 3 Series E91 LCI 330i (2012)

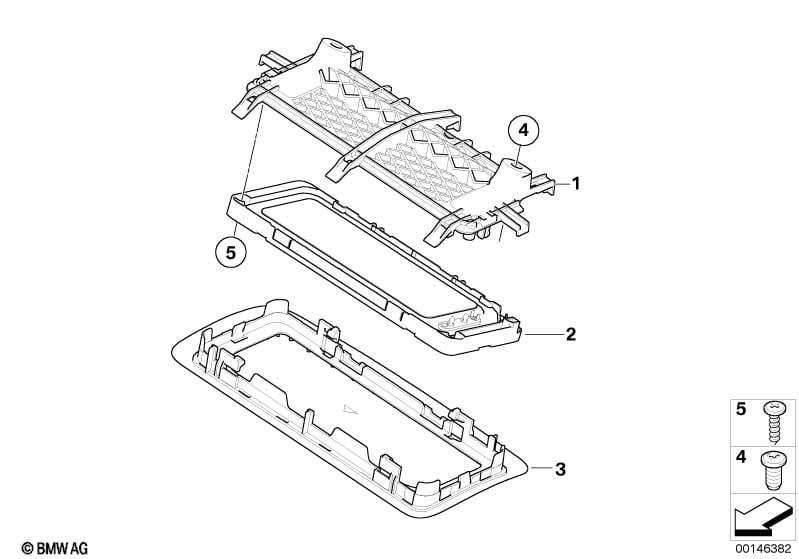

This Loudspeaker components for headlining technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.

Loudspeaker components for headlining
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Electric panoramic roof
and
HiFi System Professional DSP
and
Harman/Kardon Surround Sound system
and
Individual audio system
S402A=Yes

S677A=Yes

S688A=No

S752A=No
01 Bracket, headlining loudspeaker, left 1 65136951985 $7.03 Shop at ECS Tuning
01 Bracket, headlining loudspeaker, right 1 65136951986 $7.03 Shop at ECS Tuning
For vehicles with
Electric panoramic roof
and
HiFi System Professional DSP
and
Harman/Kardon Surround Sound system
and
Individual audio system
S402A=Yes

S677A=No

S688A=Yes

S752A=No
01 Bracket, headlining loudspeaker, left 1 65136951985 $7.03 Shop at ECS Tuning
01 Bracket, headlining loudspeaker, right 1 65136951986 $7.03 Shop at ECS Tuning
For vehicles with
Electric panoramic roof
and
HiFi System Professional DSP
and
Harman/Kardon Surround Sound system
and
Individual audio system
S402A=Yes

S677A=No

S688A=No

S752A=Yes
01 Bracket, headlining loudspeaker, left 1 65136951985 $7.03 Shop at ECS Tuning
01 Bracket, headlining loudspeaker, right 1 65136951986 $7.03 Shop at ECS Tuning
For vehicles with
Electric panoramic roof
and
HiFi System Professional DSP
and
Harman/Kardon Surround Sound system
and
Individual audio system
S402A=No

S677A=Yes

S688A=No

S752A=No
01 Bracket, headlining loudspeaker, left 1 65136951983 $7.03 Shop at ECS Tuning
01 Bracket, headlining loudspeaker, right 1 65136951984 $7.03 Shop at ECS Tuning
For vehicles with
Electric panoramic roof
and
HiFi System Professional DSP
and
Harman/Kardon Surround Sound system
and
Individual audio system
S402A=No

S677A=No

S688A=Yes

S752A=No
01 Bracket, headlining loudspeaker, left 1 65136951983 $7.03 Shop at ECS Tuning
01 Bracket, headlining loudspeaker, right 1 65136951984 $7.03 Shop at ECS Tuning
For vehicles with
Electric panoramic roof
and
HiFi System Professional DSP
and
Harman/Kardon Surround Sound system
and
Individual audio system
S402A=No

S677A=No

S688A=No

S752A=Yes
01 Bracket, headlining loudspeaker, left 1 65136951983 $7.03 Shop at ECS Tuning
01 Bracket, headlining loudspeaker, right 1 65136951984 $7.03 Shop at ECS Tuning
For vehicles with
HiFi System Professional DSP
or
Harman/Kardon Surround Sound system
or
Individual audio system
S677A=Yes

S688A=Yes

S752A=Yes
02 High and mid-range speaker 2 65139143154 $126.92 Shop at ECS Tuning
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
beige
S402A=Yes

S677A=Yes

S688A=No

S752A=No

B4=Yes
03 Cover f left loudspeaker BEIGE 1 65136961305 $42.69 Shop at ECS Tuning
03 Cover f right loudspeaker BEIGE 1 65136961306 $42.69 Shop at ECS Tuning
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
beige
S402A=Yes

S677A=No

S688A=Yes

S752A=No

B4=Yes
03 Cover f left loudspeaker BEIGE 1 65136961305 $42.69 Shop at ECS Tuning
03 Cover f right loudspeaker BEIGE 1 65136961306 $42.69 Shop at ECS Tuning
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
beige
S402A=Yes

S677A=No

S688A=No

S752A=Yes

B4=Yes
03 Cover f left loudspeaker BEIGE 1 65136961305 $42.69 Shop at ECS Tuning
03 Cover f right loudspeaker BEIGE 1 65136961306 $42.69 Shop at ECS Tuning
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
beige
S402A=No

S677A=Yes

S688A=No

S752A=No

B4=Yes
03 Cover f left loudspeaker BEIGE 1 65136961283 $42.69 Shop at ECS Tuning
03 Cover f right loudspeaker BEIGE 1 65136961284 $42.69 Shop at ECS Tuning
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
beige
S402A=No

S677A=No

S688A=Yes

S752A=No

B4=Yes
03 Cover f left loudspeaker BEIGE 1 65136961283 $42.69 Shop at ECS Tuning
03 Cover f right loudspeaker BEIGE 1 65136961284 $42.69 Shop at ECS Tuning
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
beige
S402A=No

S677A=No

S688A=No

S752A=Yes

B4=Yes
03 Cover f left loudspeaker BEIGE 1 65136961283 $42.69 Shop at ECS Tuning
03 Cover f right loudspeaker BEIGE 1 65136961284 $42.69 Shop at ECS Tuning
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
Cloth "Amaretta Reflex"
S402A=Yes

S677A=Yes

S688A=No

S752A=No

AD=Yes
03 Cover f left loudspeaker GRAU 1 65136961307 $42.69 Shop at ECS Tuning
03 Cover f right loudspeaker GRAU 1 65136961308 $42.69 Shop at ECS Tuning
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
Cloth "Amaretta Reflex"
S402A=Yes

S677A=No

S688A=Yes

S752A=No

AD=Yes
03 Cover f left loudspeaker GRAU 1 65136961307 $42.69 Shop at ECS Tuning
03 Cover f right loudspeaker GRAU 1 65136961308 $42.69 Shop at ECS Tuning
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
Cloth "Amaretta Reflex"
S402A=Yes

S677A=No

S688A=No

S752A=Yes

AD=Yes
03 Cover f left loudspeaker GRAU 1 65136961307 $42.69 Shop at ECS Tuning
03 Cover f right loudspeaker GRAU 1 65136961308 $42.69 Shop at ECS Tuning
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
Black
S402A=Yes

S677A=Yes

S688A=No

S752A=No

SW=Yes
03 Cover f left loudspeaker SCHWARZ 1 65136961309 $42.69 Shop at ECS Tuning
03 Cover f right loudspeaker SCHWARZ 1 65136961310 $42.69 Shop at ECS Tuning
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
Black
S402A=Yes

S677A=No

S688A=Yes

S752A=No

SW=Yes
03 Cover f left loudspeaker SCHWARZ 1 65136961309 $42.69 Shop at ECS Tuning
03 Cover f right loudspeaker SCHWARZ 1 65136961310 $42.69 Shop at ECS Tuning
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
Black
S402A=Yes

S677A=No

S688A=No

S752A=Yes

SW=Yes
03 Cover f left loudspeaker SCHWARZ 1 65136961309 $42.69 Shop at ECS Tuning
03 Cover f right loudspeaker SCHWARZ 1 65136961310 $42.69 Shop at ECS Tuning
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
Cloth "Amaretta Reflex"
S402A=No

S677A=Yes

S688A=No

S752A=No

AD=Yes
03 Cover f left loudspeaker GRAU 1 65136961285 $42.69 Shop at ECS Tuning
03 Cover f right loudspeaker GRAU 1 65136961286 $42.69 Shop at ECS Tuning
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
Cloth "Amaretta Reflex"
S402A=No

S677A=No

S688A=Yes

S752A=No

AD=Yes
03 Cover f left loudspeaker GRAU 1 65136961285 $42.69 Shop at ECS Tuning
03 Cover f right loudspeaker GRAU 1 65136961286 $42.69 Shop at ECS Tuning
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
Cloth "Amaretta Reflex"
S402A=No

S677A=No

S688A=No

S752A=Yes

AD=Yes
03 Cover f left loudspeaker GRAU 1 65136961285 $42.69 Shop at ECS Tuning
03 Cover f right loudspeaker GRAU 1 65136961286 $42.69 Shop at ECS Tuning
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
Black
S402A=No

S677A=Yes

S688A=No

S752A=No

SW=Yes
03 Cover f left loudspeaker SCHWARZ 1 65136961287 $42.69 Shop at ECS Tuning
03 Cover f right loudspeaker SCHWARZ 1 65136961288 $42.69 Shop at ECS Tuning
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
Black
S402A=No

S677A=No

S688A=Yes

S752A=No

SW=Yes
03 Cover f left loudspeaker SCHWARZ 1 65136961287 $42.69 Shop at ECS Tuning
03 Cover f right loudspeaker SCHWARZ 1 65136961288 $42.69 Shop at ECS Tuning
For vehicles with
  Electric panoramic roof
  and
  HiFi System Professional DSP
  and
  Harman/Kardon Surround Sound system
  and
  Individual audio system
and
Black
S402A=No

S677A=No

S688A=No

S752A=Yes

SW=Yes
03 Cover f left loudspeaker SCHWARZ 1 65136961287 $42.69 Shop at ECS Tuning
03 Cover f right loudspeaker SCHWARZ 1 65136961288 $42.69 Shop at ECS Tuning
For vehicles with
HiFi System Professional DSP
or
Harman/Kardon Surround Sound system
or
Individual audio system
S677A=Yes

S688A=Yes

S752A=Yes
04 Fillister head screw 4 51417066337 $0.47 Shop at ECS Tuning
05 Oval-head screw 4X12 4 64111378861 $0.53 Shop at ECS Tuning
05 Fillister head screw ISA 4X12 4 07147135132 $0.16 Shop at ECS Tuning

See Also

EARTH STRAP FOR ENGINE HOOD EARTH STRAP FOR ENGINE HOOD
RADIO BMW BUSINESS CD RADIO BMW BUSINESS CD
RADIO BMW PROFESSIONAL CD RADIO BMW PROFESSIONAL CD
M-AUDIO SYSTEM CONTROLLER M-AUDIO SYSTEM CONTROLLER
DAB TUNER DAB TUNER
CAR INFOTAINMENT COMPUTER - MID CAR INFOTAINMENT COMPUTER - MID
RADIO BMW PROFESSIONAL CD RADIO BMW PROFESSIONAL CD
DAB RETROFIT DAB RETROFIT
RADIO BMW PROFESSIONAL CD RADIO BMW PROFESSIONAL CD
PARTS REPAIR SERVICE PARTS REPAIR SERVICE "PROFESSIONAL CD"
USB/AUDIO INTERFACE USB/AUDIO INTERFACE
AUXILIARY CONNECTION CABLE AUXILIARY CONNECTION CABLE
CD CHANGER/BRACKET CD CHANGER/BRACKET
COMPONENTS CENTRAL BASS COMPONENTS CENTRAL BASS
ONE PART TOP-HIFI/HARMAN KARDON I-PANEL ONE PART TOP-HIFI/HARMAN KARDON I-PANEL
SINGLE PARTS F FRONT DOOR LOUDSPEAKER SINGLE PARTS F FRONT DOOR LOUDSPEAKER
SINGLE PARTS F REAR DOOR LOUDSPEAKER SINGLE PARTS F REAR DOOR LOUDSPEAKER
INDIVIDUAL AUDIO SYSTEM, I-PANEL INDIVIDUAL AUDIO SYSTEM, I-PANEL
INDIVIDUAL AUDIO SYSTEM, DOOR, FRONT INDIVIDUAL AUDIO SYSTEM, DOOR, FRONT
INDIVIDUAL AUDIO SYSTEM, DOOR REAR INDIVIDUAL AUDIO SYSTEM, DOOR REAR

Frequently Asked Questions

What assembly is shown in the BMW 3 Series E91 LCI 330i Loudspeaker components for headlining?
This technical diagram illustrates the Loudspeaker components for headlining within the Audio, Navigation, Electronic Systems group for the 3 Series E91 LCI 330i produced during 2012. It provides a detailed exploded view of the components, identifying key parts such as the Bracket, headlining loudspeaker, left (Part #65136951985).
Which models use the hardware listed in this Loudspeaker components for headlining?
The hardware and components featured in the Loudspeaker components for headlining are specific to the 3 Series E91 LCI 330i produced during 2012. These technical specifications ensure that parts like the Bracket, headlining loudspeaker, left (65136951985) are correctly matched to the vehicle's structural and mechanical requirements.
How do I find specific parts within the Loudspeaker components for headlining assembly?
Each item in the Loudspeaker components for headlining corresponds to the numbered list below the illustration. For the 3 Series E91 LCI 330i, you can identify the Bracket, headlining loudspeaker, left by locating its position on the schematic, which then links to the official BMW part number 65136951985 for the Audio, Navigation, Electronic Systems section.
