DAB tuner for BMW 7 Series E65 760i (2008)

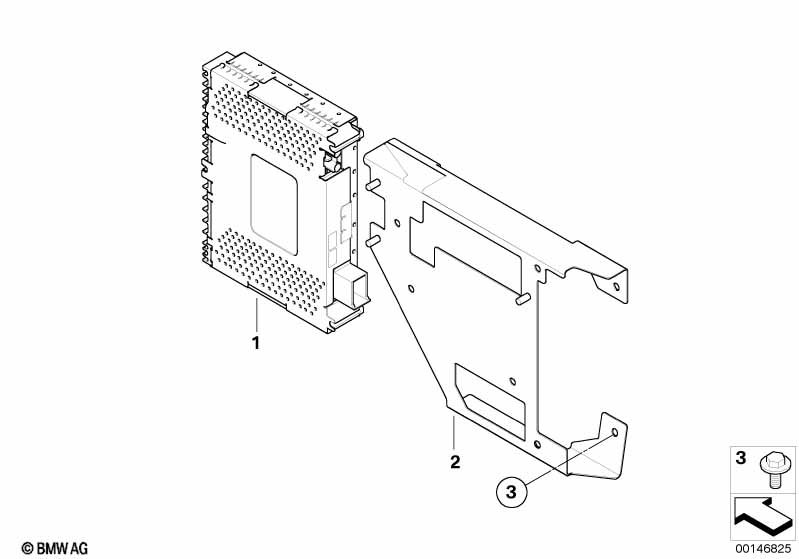

This DAB tuner technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 760i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with DAB tuner |
S654A=Yes |
||||||||
| 01 | DAB tuner | 1 | 65129216459 | Shop at ECS Tuning | ||||||
| 02 | Bracket, headset module | 1 | 84136907376 | $10.01 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M5X12-U2-ZNS3 | 3 | 07119905191 | $0.47 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 760i DAB tuner?
- This technical diagram illustrates the DAB tuner within the Audio, Navigation, Electronic Systems group for the 7 Series E65 760i produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the DAB tuner (Part #65129216459).
- Which models use the hardware listed in this DAB tuner?
- The hardware and components featured in the DAB tuner are specific to the 7 Series E65 760i produced during 2008. These technical specifications ensure that parts like the DAB tuner (65129216459) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the DAB tuner assembly?
- Each item in the DAB tuner corresponds to the numbered list below the illustration. For the 7 Series E65 760i, you can identify the DAB tuner by locating its position on the schematic, which then links to the official BMW part number 65129216459 for the Audio, Navigation, Electronic Systems section.
