Electric parts airbag for BMW 5 Series E60 LCI 525i (2009)

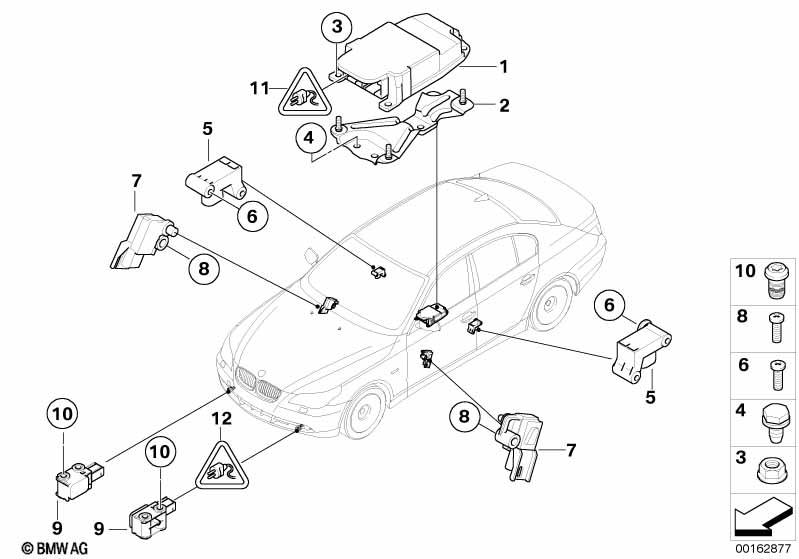

This Electric parts airbag technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Control unit airbag | 1 | 09/2005 | 65779172018 | $459.08 | Shop at ECS Tuning | ||||
| 02 | Bracket, control unit Airbag | 1 | 09/2005 | 65776942903 | $4.14 | ENDED | Shop at ECS Tuning | |||
| 03 | Locknut | M6 ZNT | 3 | 09/2005 | 07146982788 | $0.20 | Shop at ECS Tuning | |||
| 04 | Hex bolt with washer | M6X12-U1-8.8 | 3 | 09/2005 | 07119904517 | $0.36 | Shop at ECS Tuning | |||
| 05 | Sensor, B-pillar | 2 | 09/2005 | 65776977398 | $70.35 | Shop at ECS Tuning | ||||
| 06 | Fillister head screw | M6X14 | 4 | 09/2005 | 07146958688 | $0.38 | Shop at ECS Tuning | |||
| 07 | Sensor door | 2 | 03/2006 | 65779118167 | $60.95 | Shop at ECS Tuning | ||||
| 08 | Fillister head screw | ISA M6X12 | 2 | 09/2005 | 07147691336 | $0.96 | Shop at ECS Tuning | |||
| 11 | Protective cap, uncoded | 40 POL. | 1 | 09/2005 | 61136939878 | $14.93 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Socket terminal MQS | 0.2-0.35 MM²/SN | 10 | 09/2005 | 61131383776 | $0.28 | Shop at ECS Tuning | |||
| -- | Socket terminal MQS | 0,5-0.75 MM²/SN | 10 | 09/2005 | 61131393724 | $0.28 | Shop at ECS Tuning | |||
| -- | Socket housing | 20 POL. /A | 1 | 09/2005 | 12521744630 | $1.73 | Shop at ECS Tuning | |||
| -- | Socket housing | 20 POL. | 1 | 09/2005 | 12521744631 | $1.73 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
