Official radio antenna/horn speaker for BMW 5 Series E60 LCI 525i (2009)

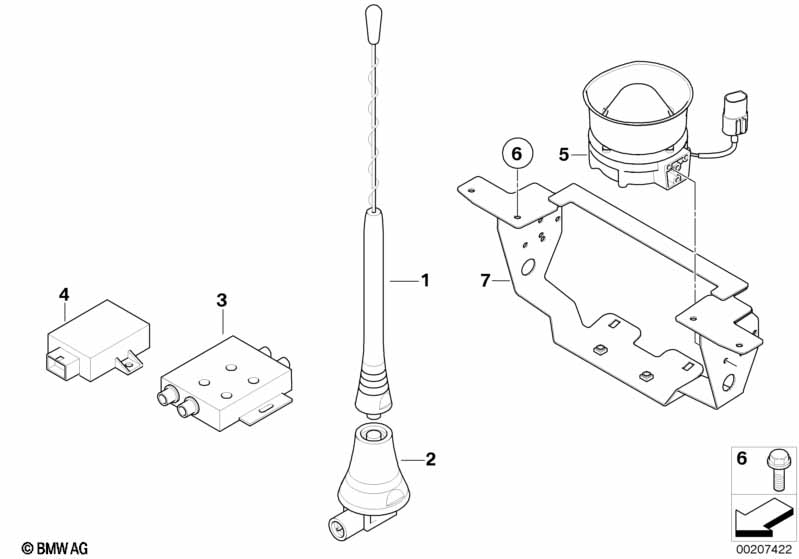

This Official radio antenna/horn speaker technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Antenna radiator | 575 MM | 1 | 65206932668 | +core | Shop at ECS Tuning | ||||
| 02 | Antenna base | 1 | 65206932669 | ENDED, +core | Shop at ECS Tuning | |||||
| 03 | Antenna control device | 1 | 65206938065 | ENDED, +core | Shop at ECS Tuning | |||||
| For vehicles with Sondersignalanlage Hella RTK-6 or Patrol vehicle, camouflaged |
S151A=Yes S186A=Yes |
|||||||||
| 07 | Pneumatic loudspeaker bracket | 1 | 65736941076 | ENDED, +core | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
