Individual audio system, door, front for BMW 5 Series E61 LCI 530d (2010)

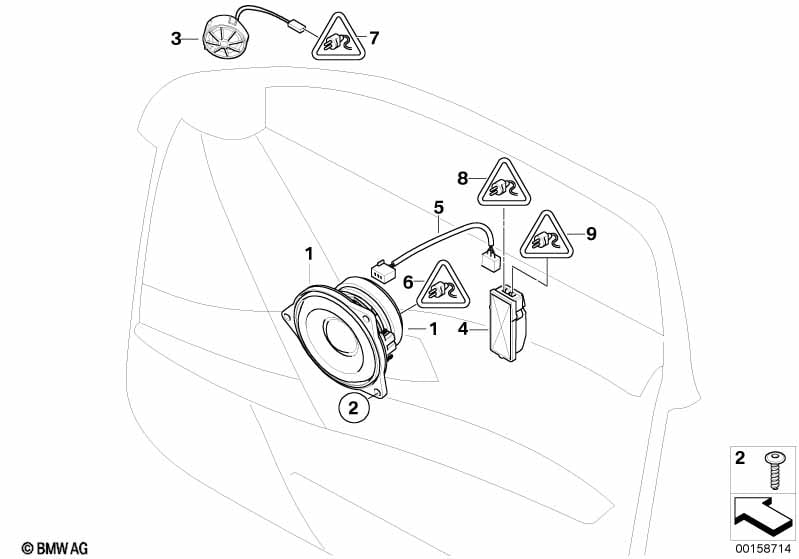

This Individual audio system, door, front technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Individual audio system |
S752A=Yes |
||||||||
| 01 | Mid-range speaker Individual Audio | 2 | 03/2007 | 65137838904 | $171.83 | +core | Shop at ECS Tuning | |||
| 02 | Fillister head screw | 6 | 03/2007 | 07147120341 | $2.25 | Shop at ECS Tuning | ||||
| 03 | Tweeter for Individual Audio | 2 | 03/2007 | 65137838900 | $79.17 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Frequency-crossover netw. | 2 | 03/2007 | 65137838929 | $37.16 | +core | Shop at ECS Tuning | |||
| 05 | Connecting line | 2 | 03/2007 | 65137839255 | $6.27 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E61 LCI 530d Individual audio system, door, front?
- This technical diagram illustrates the Individual audio system, door, front within the Audio, Navigation, Electronic Systems group for the 5 Series E61 LCI 530d produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Mid-range speaker Individual Audio (Part #65137838904).
- Which models use the hardware listed in this Individual audio system, door, front?
- The hardware and components featured in the Individual audio system, door, front are specific to the 5 Series E61 LCI 530d produced during 2010. These technical specifications ensure that parts like the Mid-range speaker Individual Audio (65137838904) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Individual audio system, door, front assembly?
- Each item in the Individual audio system, door, front corresponds to the numbered list below the illustration. For the 5 Series E61 LCI 530d, you can identify the Mid-range speaker Individual Audio by locating its position on the schematic, which then links to the official BMW part number 65137838904 for the Audio, Navigation, Electronic Systems section.
