Amplifier/bracket Indi. Audio System for BMW 5 Series E61 LCI 530xi (2010)
This Amplifier/bracket Indi. Audio System technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 530xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Individual audio system |
S752A=Yes |
||||||||

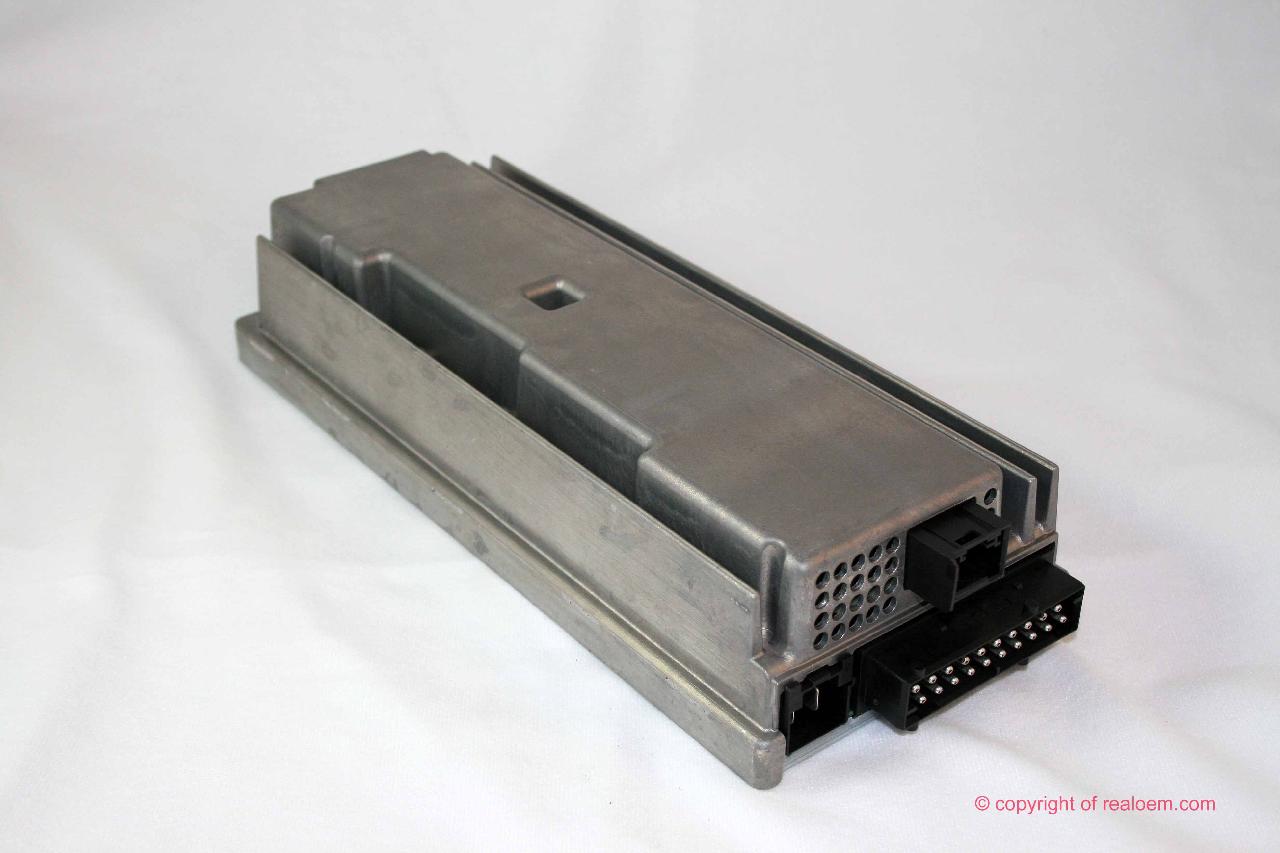

| 01 | Amplifier for Individual Audio System | 1 | 09/2009 | 65127845163 | ENDED | Shop at ECS Tuning | ||||
| 01 | Amplifier for Individual Audio System | 1 | 09/2009 | 65128054808 | Shop at ECS Tuning | |||||
| 02 | Holder amplifier | 1 | 03/2007 | 65156925443 | $11.77 | Shop at ECS Tuning | ||||
| 03 | Locking bracket | 2 | 03/2007 | 65126908277 | $1.92 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M5X14 | 4 | 03/2007 | 07119902932 | $0.53 | Shop at ECS Tuning | |||
| 05 | Body nut | M5 | 4 | 03/2007 | 61131372033 | $1.37 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
