Amplifier/bracket Indi. Audio System for BMW 3 Series E90 LCI 330i (2011)

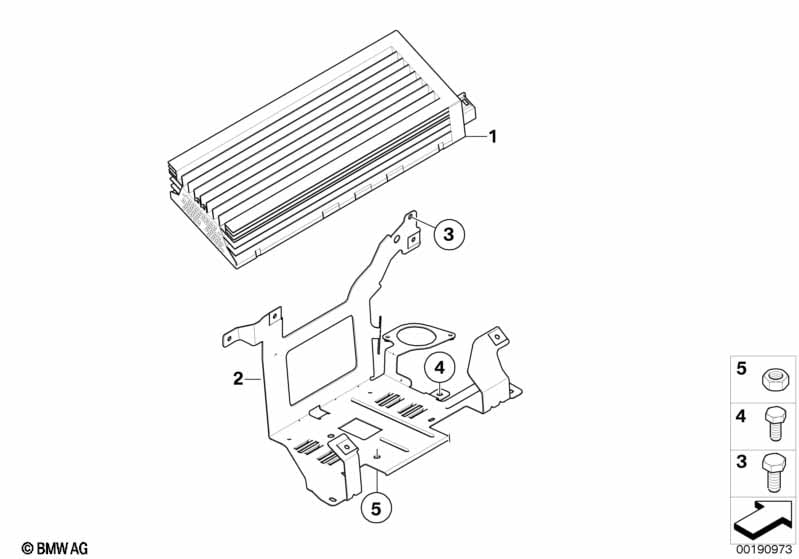

This Amplifier/bracket Indi. Audio System technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Individual audio system |
S752A=Yes |
||||||||
| 01 | Amplifier for Individual Audio System | 1 | 09/2009 | 03/2011 | 65127844934 | ENDED | Shop at ECS Tuning | |||
| 01 | Amplifier for Individual Audio System | 1 | 09/2009 | 07/2013 | 65127847666 | ENDED | Shop at ECS Tuning | |||
| 01 | Amplifier for Individual Audio System | 1 | 09/2009 | 65128054808 | Shop at ECS Tuning | |||||
| 02 | Holder amplifier | 1 | 09/2007 | 65156945072 | $13.07 | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M5X14 | 4 | 09/2007 | 07119902932 | $0.53 | Shop at ECS Tuning | |||
| 04 | Hex bolt | M6X10 | 1 | 09/2007 | 07119903842 | $0.45 | Shop at ECS Tuning | |||
| 05 | Hex nut with plate | AM6-8-ZNS3 | 2 | 09/2007 | 07129904858 | $0.47 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
