Individual Audio system, door rear for BMW 3 Series E91 335i (2008)

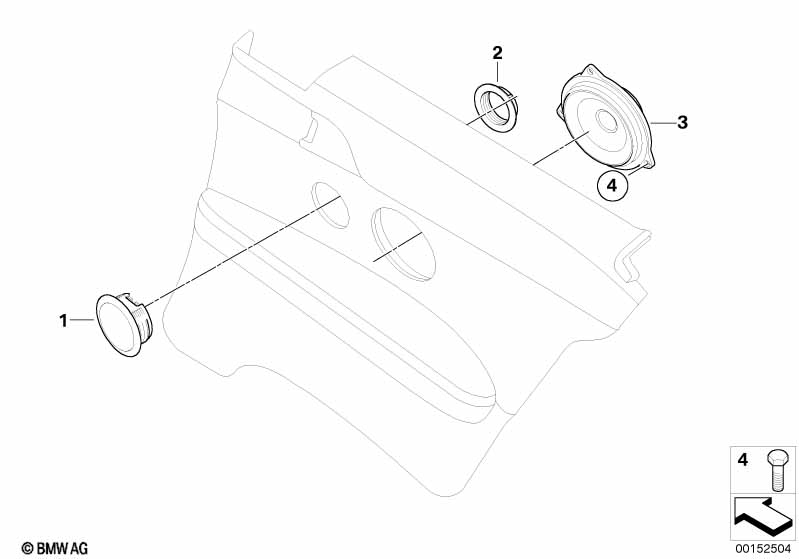

This Individual Audio system, door rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 335i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Individual audio system |
S752A=Yes |
||||||||
| 01 | Tweeter for Individual Audio | 2 | 09/2007 | 65137838901 | $86.00 | +core | Shop at ECS Tuning | |||
| 02 | Tweeter threaded ring | 2 | 09/2007 | 65138360689 | $6.18 | Shop at ECS Tuning | ||||
| 03 | Mid-range speaker Individual Audio | 2 | 09/2007 | 65137838905 | $171.83 | +core | Shop at ECS Tuning | |||
| 04 | Phillips screw f plastic material | TS5X12 | 6 | 09/2007 | 07129904424 | $0.25 | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
