Components, radio antenna for BMW 3 Series E93 LCI 325d (2013)

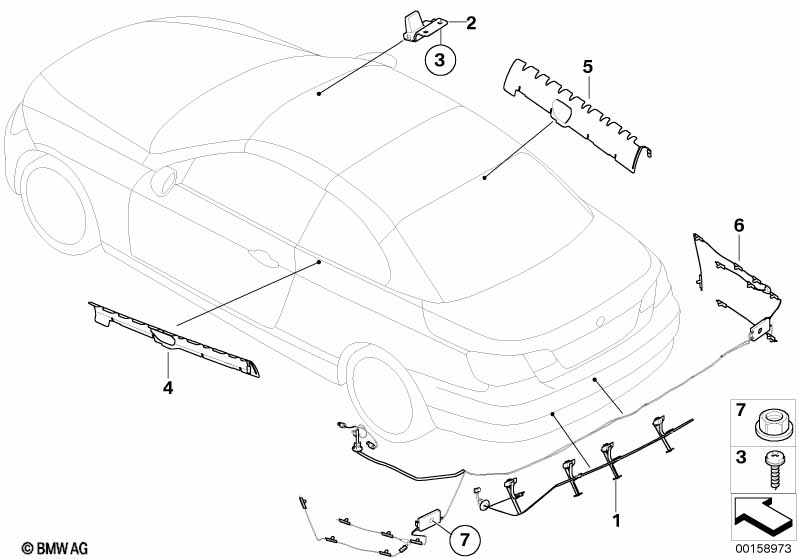

This Components, radio antenna technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 LCI 325d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Antenna, bumper-mounted, FM | 1 | 65206947216 | $24.42 | Shop at ECS Tuning | |||||
| For vehicles with DAB tuner |
S654A=Yes |
|||||||||
| 02 | DAB-Antenna | 1 | 65209156653 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and TV function and Navigation system Professional |
L802A=Yes S601A=Yes S609A=Yes |
|||||||||
| 02 | DAB-Antenna | 1 | 65209156653 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and TV function and Navigation system Professional |
L802A=Yes S601A=Yes S609A=No |
|||||||||
| 02 | DAB-Antenna | 1 | 65209156653 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and TV function and Navigation system Professional |
L802A=Yes S601A=No S609A=Yes |
|||||||||
| 02 | DAB-Antenna | 1 | 65209156653 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with DAB tuner |
S654A=Yes |
|||||||||
| 03 | Sheet metal screw | ISA M5X12 | 2 | 07149158177 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Antenna for AM/FM, left | 1 | 65206968651 | $21.64 | Shop at ECS Tuning | |||||
| 05 | Antenna for AM/FM, right | 1 | 65206968652 | $21.64 | Shop at ECS Tuning | |||||
| For vehicles with DAB tuner |
S654A=Yes |
|||||||||
| 06 | Antenna, bumper-mounted, TV/DAB | 1 | 65206947252 | Shop at ECS Tuning | ||||||
| 07 | Nut | M6 | 2 | 07146973709 | $0.27 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
