M-Audio System controller/CHAMP for BMW 5 Series E60 LCI 525xi (2009)

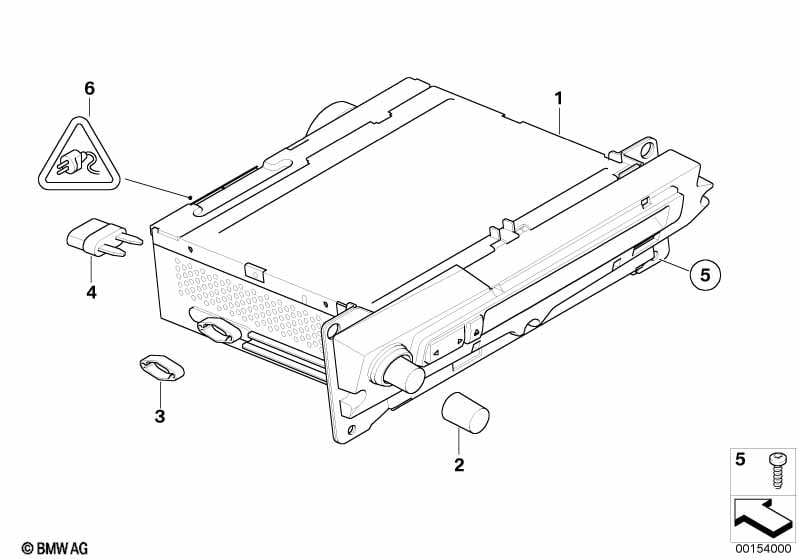

This M-Audio System controller/CHAMP technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention! In the event that the head unit is stolen, it is necessary to consult with the insurance company to determine whether an exchange part may be installed and whether the associated flat rate deposit may be applied . If the insurance demands that a new part must be used, then the corresponding part number must be taken from the EPC . |
|||||||||
| 01 | CHAMP Business | 1 | 03/2007 | 65129196760 | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business |
S606A=Yes |
|||||||||
| 01 | RP REMAN M-audio system controller Navi. | 1 | 03/2007 | 65129119846 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Radio BMW Professional |
S663A=Yes |
|||||||||
| 01 | M Audio system controller Professional | 1 | 03/2007 | 65129195754 | Shop at ECS Tuning | |||||
| 01 | REMAN M audio system controller Prof. | 1 | 03/2007 | 65129119844 | $1542.12 | ENDED | Shop at ECS Tuning | |||
| 02 | Button | 1 | 03/2007 | 65129119572 | $16.48 | Shop at ECS Tuning | ||||
| 03 | Guide | 1 | 03/2007 | 65126929837 | $1.29 | Shop at ECS Tuning | ||||
| 04 | Fuse Mini, blue | 15A | 1 | 03/2007 | 61136917404 | $0.77 | Shop at ECS Tuning | |||
| 05 | Fillister head self-tapping screw | ST4,2X16-U1- SW | 1 | 03/2007 | 07119903793 | $0.38 | Shop at ECS Tuning | |||
| 06 | Plug housing | 16 POL. | 1 | 03/2007 | 61138384580 | $3.78 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | X | 03/2007 | 61130005197 | $1.65 | Shop at ECS Tuning | |||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | X | 03/2007 | 61130056960 | Shop at ECS Tuning | ||||
| -- | Rep. kit for socket housing | 12 POL. | 1 | 03/2007 | 61132471240 | Shop at ECS Tuning | ||||
| -- | Socket housing | 8 POL. | 1 | 03/2007 | 61136905788 | $1.52 | Shop at ECS Tuning | |||
| -- | Socket contact ELO-Power 2,8x0,63 | 0,5-1,0 MM² | X | 03/2007 | 61138364832 | $0.35 | Shop at ECS Tuning | |||
| -- | Fuse | 1 | 03/2007 | 61138384567 | $0.92 | Shop at ECS Tuning | ||||
| -- | Covering cap | 12 POL. | 1 | 03/2007 | 61138387206 | $2.07 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
