Single parts f antenna-diversity for BMW 1 Series E82 118d (2013)

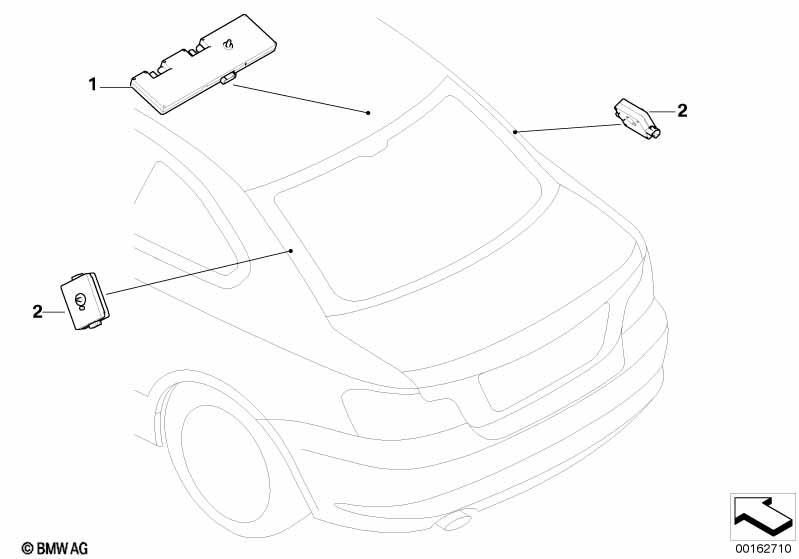

This Single parts f antenna-diversity technical drawing provides a detailed breakdown of the assembly for the 1 Series E82 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Antenna amplifier Diversity | 868 MHZ | 1 | 65209187658 | Shop at ECS Tuning | |||||
| For vehicles with Radio frequency 434 MHz |
S874A=Yes |
|||||||||
| 01 | Antenna amplifier Diversity | 434 MHZ | 1 | 65209187642 | Shop at ECS Tuning | |||||
| For vehicles with DAB tuner |
S654A=Yes |
|||||||||
| 01 | Antenna amplifier Diversity | 868 MHZ | 1 | 65209187647 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Radio frequency 315 MHz |
L807A=No S876A=Yes |
|||||||||
| 01 | Antenna amplifier Diversity | 315 MHZ | 1 | 65209187643 | $160.55 | Shop at ECS Tuning | ||||
| 02 | Trap circuit | 2 | 65246990090 | $17.86 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E82 118d Single parts f antenna-diversity?
- This technical diagram illustrates the Single parts f antenna-diversity within the Audio, Navigation, Electronic Systems group for the 1 Series E82 118d produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the Antenna amplifier Diversity (Part #65209187658).
- Which models use the hardware listed in this Single parts f antenna-diversity?
- The hardware and components featured in the Single parts f antenna-diversity are specific to the 1 Series E82 118d produced during 2013. These technical specifications ensure that parts like the Antenna amplifier Diversity (65209187658) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single parts f antenna-diversity assembly?
- Each item in the Single parts f antenna-diversity corresponds to the numbered list below the illustration. For the 1 Series E82 118d, you can identify the Antenna amplifier Diversity by locating its position on the schematic, which then links to the official BMW part number 65209187658 for the Audio, Navigation, Electronic Systems section.
