Amplifier HiFi Prof. / Harman Kardon for BMW 1 Series E88 135i (2010)

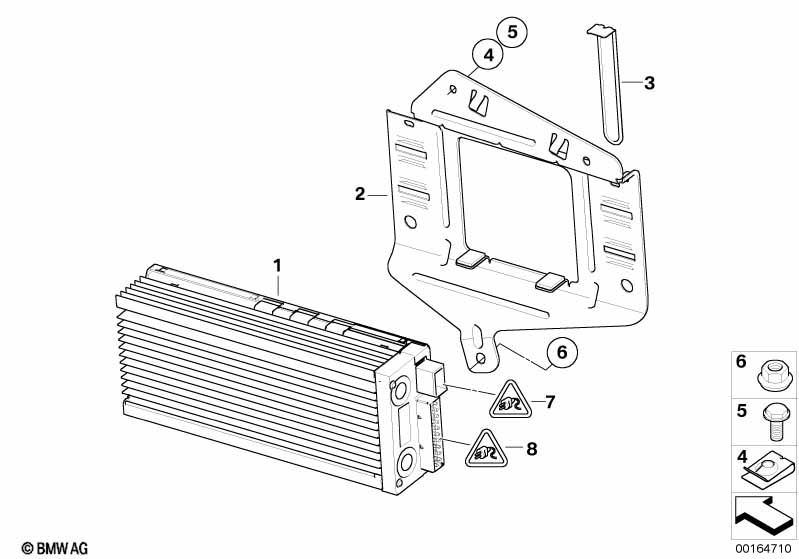

This Amplifier HiFi Prof. / Harman Kardon technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 135i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with HiFi System Professional DSP |
S677A=Yes |
|||||||||
| 01 | Top-hifi system amplifier | 1 | 03/2010 | 65129181743 | $1232.18 | Shop at ECS Tuning | ||||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system |
S677A=Yes S688A=Yes |
|||||||||
| 02 | Holder Top-Hifi system amplifier | 1 | 65159115191 | $8.63 | Shop at ECS Tuning | |||||
| 03 | Locking bracket | 2 | 65126908277 | $1.92 | Shop at ECS Tuning | |||||
| 04 | Body nut | M6 | 2 | 03/2013 | 07147133884 | $0.36 | Shop at ECS Tuning | |||
| 05 | Hex bolt with washer | M6X14U2-ZNNIVSI | 2 | 07119905952 | $0.91 | Shop at ECS Tuning | ||||
| 06 | Hex nut | M6-8-ZNFE SW | 1 | 07119904022 | $0.09 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E88 135i Amplifier HiFi Prof. / Harman Kardon?
- This technical diagram illustrates the Amplifier HiFi Prof. / Harman Kardon within the Audio, Navigation, Electronic Systems group for the 1 Series E88 135i produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Top-hifi system amplifier (Part #65129181743).
- Which models use the hardware listed in this Amplifier HiFi Prof. / Harman Kardon?
- The hardware and components featured in the Amplifier HiFi Prof. / Harman Kardon are specific to the 1 Series E88 135i produced during 2010. These technical specifications ensure that parts like the Top-hifi system amplifier (65129181743) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Amplifier HiFi Prof. / Harman Kardon assembly?
- Each item in the Amplifier HiFi Prof. / Harman Kardon corresponds to the numbered list below the illustration. For the 1 Series E88 135i, you can identify the Top-hifi system amplifier by locating its position on the schematic, which then links to the official BMW part number 65129181743 for the Audio, Navigation, Electronic Systems section.
