Electric parts airbag for BMW 1 Series E88 120i (2013)

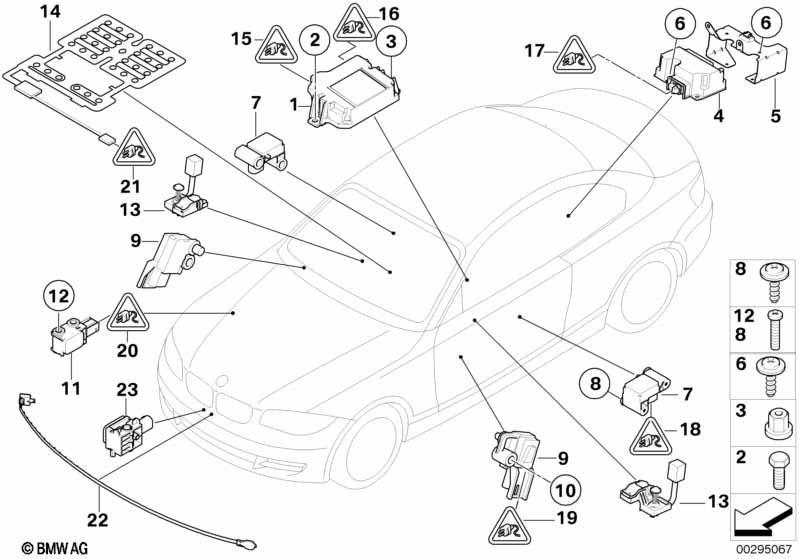

This Electric parts airbag technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 120i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Sensor mats for detecting seat occupancy on passenger side of US models are included in the HG52 seat upholstery. |
|||||||||
| 01 | Control unit airbag | 1 | 65779248298 | Shop at ECS Tuning | ||||||
| For vehicles with Active pedestrian protection |
S8TFA=Yes |
|||||||||
| 01 | Control unit airbag | 1 | 03/2012 | 65779264916 | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M6X16-8.8-ZNS3 | 1 | 07119904371 | $0.16 | Shop at ECS Tuning | ||||
| 03 | Locknut | M6 ZNT | 2 | 07146982788 | $0.20 | Shop at ECS Tuning | ||||
| 04 | Rollover controller | 1 | 65779264926 | Shop at ECS Tuning | ||||||
| 05 | Bracket for roll-over controller | 1 | 65776987967 | $9.11 | Shop at ECS Tuning | |||||
| 06 | Fillister head screw | 5 | 07146956679 | $1.62 | Shop at ECS Tuning | |||||
| 07 | Accelerating sensor | 2 | 65776956485 | $51.75 | Shop at ECS Tuning | |||||
| 08 | Oval-head screw with anti-rotation lock | ISA M6X40 | 4 | 52207076848 | $0.67 | Shop at ECS Tuning | ||||
| 09 | Sensor door | 2 | 65779118167 | $60.95 | Shop at ECS Tuning | |||||
| 10 | Hexagon screw with flange | M6X10-8.8-ZNS3 | 2 | 07119904128 | $0.53 | Shop at ECS Tuning | ||||
| For vehicles with Extra package, EU-specific |
S230A=Yes |
|||||||||
| 14 | Sensor mat f co-driver's seat identif. | 1 | 03/2009 | 65779153118 | Shop at ECS Tuning | |||||
| For vehicles with Active pedestrian protection |
S8TFA=Yes |
|||||||||
| 22 | Sensor, pedestrian protection f-optic | 1 | 65769318773 | Shop at ECS Tuning | ||||||
| 23 | Accelerating sensor | 1 | 07/2012 | 65779244144 | Shop at ECS Tuning | |||||
