Alarm systems for BMW 1 Series E88 135i (2013)

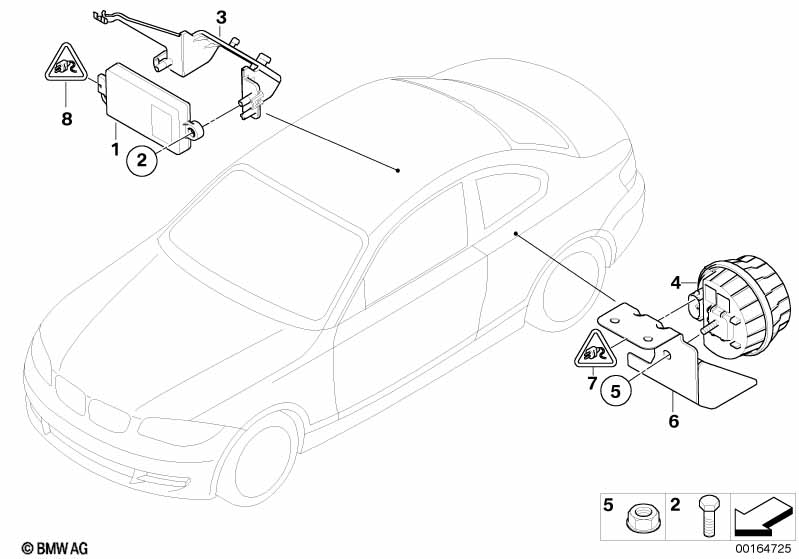

This Alarm systems technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 135i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | DWA-Alarm System | 3 | 65776989713 | $97.27 | Shop at ECS Tuning | |||||
| 02 | Phillips screw f plastic material | TS5X12 | 2 | 07129904424 | $0.25 | Shop at ECS Tuning | ||||
| 03 | Bracket, alarm system interior monitor | 1 | 65759120923 | $3.95 | Shop at ECS Tuning | |||||
| 04 | Altern.power siren w inclination indicat | 1 | 65759147997 | $183.75 | Shop at ECS Tuning | |||||
| 05 | Hex nut with plate | AM6-8-ZNNIV SI | 3 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 06 | Bracket alternative power siren | 1 | 65759137670 | $6.90 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E88 135i Alarm systems?
- This technical diagram illustrates the Alarm systems within the Audio, Navigation, Electronic Systems group for the 1 Series E88 135i produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the DWA-Alarm System (Part #65776989713).
- Which models use the hardware listed in this Alarm systems?
- The hardware and components featured in the Alarm systems are specific to the 1 Series E88 135i produced during 2013. These technical specifications ensure that parts like the DWA-Alarm System (65776989713) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Alarm systems assembly?
- Each item in the Alarm systems corresponds to the numbered list below the illustration. For the 1 Series E88 135i, you can identify the DWA-Alarm System by locating its position on the schematic, which then links to the official BMW part number 65776989713 for the Audio, Navigation, Electronic Systems section.
