Universal aerial cable for BMW 5 Series E60 525i (2005)

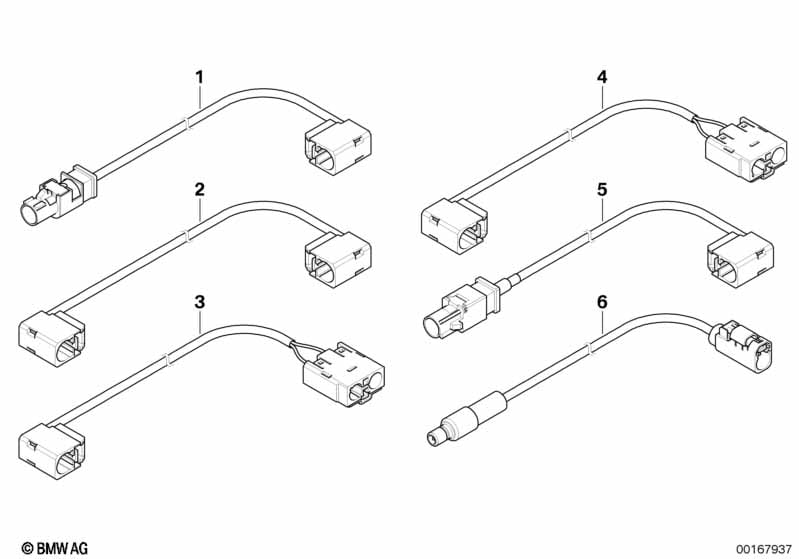

This Universal aerial cable technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Fabricate deleted antenna cable using coaxial cable repair part assortment (see notices in Text Image Unit) |
|||||||||
| 01 | Antenna cable | L= 4990MM | 1 | 61126962819 | $35.20 | ENDED | Shop at ECS Tuning | |||
| 01 | Antenna cable | L= 6420MM | 1 | 61126962820 | $35.20 | ENDED | Shop at ECS Tuning | |||
| 02 | Antenna cable | L= 7180MM | 1 | 61126962825 | $42.65 | ENDED | Shop at ECS Tuning | |||
| 02 | Antenna cable | L= 3400MM | 1 | 61126962826 | $35.20 | ENDED | Shop at ECS Tuning | |||
| 02 | Antenna cable | L= 6640MM | 1 | 61126962866 | $42.65 | ENDED | Shop at ECS Tuning | |||
| 03 | Antenna cable | L= 5180MM | 1 | 61126962824 | $35.20 | ENDED | Shop at ECS Tuning | |||
| 04 | Antenna cable | L= 3650MM | 1 | 61126962829 | $35.20 | ENDED | Shop at ECS Tuning | |||
| 05 | Antenna cable | L= 3400MM | 1 | 61126962831 | $35.20 | ENDED | Shop at ECS Tuning | |||
| 06 | Antenna cable | L= 5110MM | 1 | 61126962832 | $35.20 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
