Amplifier / bracket for BMW 7 Series F02 LCI 740LdX (2015)

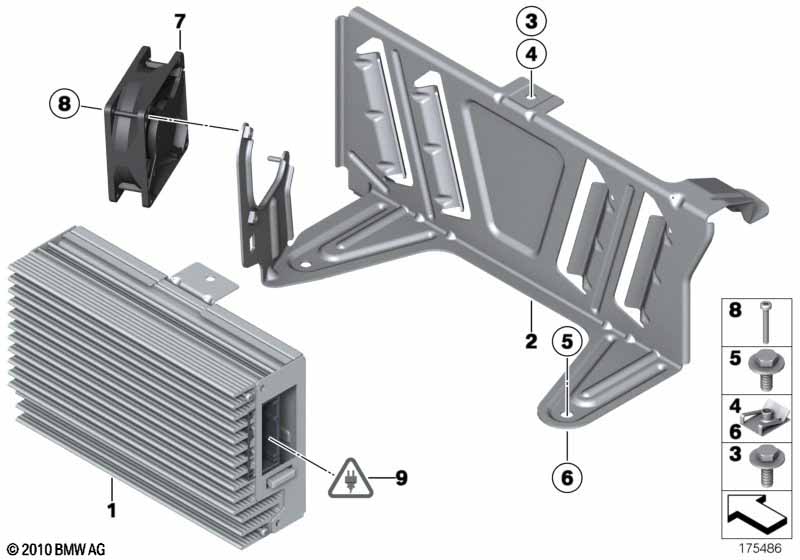

This Amplifier / bracket technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 740LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Bang&Olufsen High End Surround Sound |
S6F2A=Yes |
|||||||||
| 01 | Amplifier for Individual Audio System | 1 | 05/2022 | 65126808524 | ENDED | Shop at ECS Tuning | ||||
| 01 | Amplifier for Individual Audio System | 1 | 65125A6F8A6 | Shop at ECS Tuning | ||||||
| For vehicles with Harman/Kardon Surround Sound system and Bang&Olufsen High End Surround Sound |
S688A=Yes S6F2A=No |
|||||||||
| 01 | Top-hifi system amplifier | 1 | 07/2013 | 65126815969 | Shop at ECS Tuning | |||||
| 02 | Holder amplifier | 1 | 65159153135 | Shop at ECS Tuning | ||||||
| 03 | Hex bolt | M5X14 | 1 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 04 | Body nut | M5 | 1 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M6X16-U2-ZNS3 | 2 | 07119902913 | Shop at ECS Tuning | |||||
| 06 | Body nut | M6 | 1 | 07147133884 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Fan | 1 | 65156983075 | $35.85 | +core | Shop at ECS Tuning | ||||
| 08 | Inner hex bolt | M4X30 | 2 | 07119906321 | $0.20 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
