Rear compartment monitor for BMW 7 Series F02 LCI 740Li (2015)

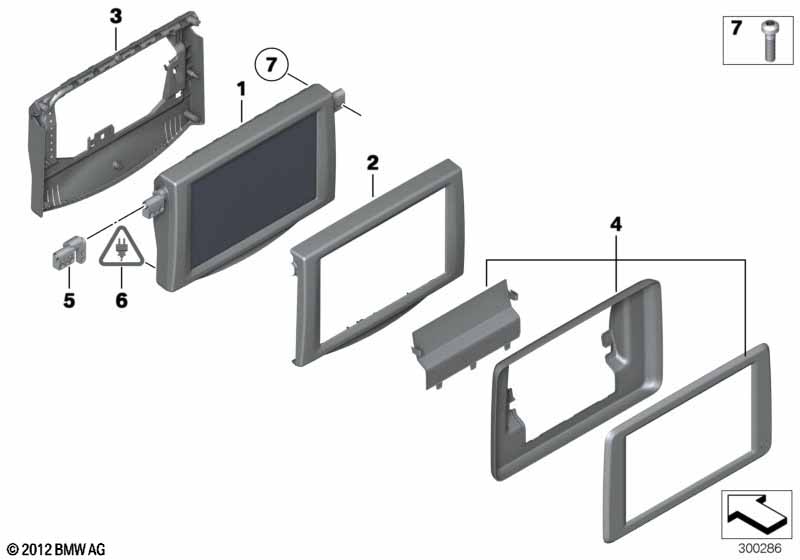

This Rear compartment monitor technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Rear Professional entertainment center and Rear entertainment Profess. with I-Drive and CIC-Zusteuerung |
S6FHA=Yes S6FRA=Yes S6VAA=No |
|||||||||
| 01 | Rear compartment monitor | 9,2" SCHWARZ | 1 | 07/2012 | 65509294912 | Shop at ECS Tuning | ||||
| For vehicles with Rear Professional entertainment center and Rear entertainment Profess. with I-Drive and CIC-Zusteuerung |
S6FHA=Yes S6FRA=No S6VAA=No |
|||||||||
| 01 | Rear compartment monitor | 9,2" SCHWARZ | 1 | 07/2012 | 65509294912 | Shop at ECS Tuning | ||||
| For vehicles with Rear Professional entertainment center and Rear entertainment Profess. with I-Drive and CIC-Zusteuerung |
S6FHA=No S6FRA=Yes S6VAA=No |
|||||||||
| 01 | Rear compartment monitor | 9,2" SCHWARZ | 1 | 07/2012 | 65509294912 | Shop at ECS Tuning | ||||
| 04 | Set of covers | 2 | 65509287604 | Shop at ECS Tuning | ||||||
| 05 | Set of hinges | 2 | 52109282020 | Shop at ECS Tuning | ||||||
