TV module / video switch for BMW 7 Series F02 730Li (2012)

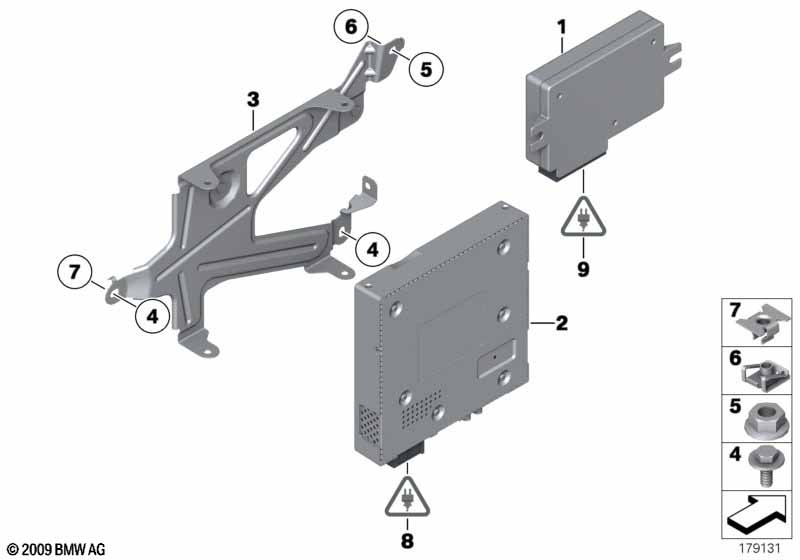

This TV module / video switch technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 730Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Video switch | 1 | 65509254343 | Shop at ECS Tuning | ||||||
| For vehicles with TV function and Navigation system Professional and Rear-compartment entertainment and Rear Professional entertainment center |
S601A=Yes S609A=Yes S6FGA=Yes S6FHA=No |
|||||||||
| 02 | TV module | RSE | 1 | 07/2012 | 65509248591 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and TV function and Rear-compartment entertainment and Rear Professional entertainment center |
L807A=Yes S601A=Yes S6FGA=Yes S6FHA=No |
|||||||||
| 02 | TV module | ISDB | 1 | 07/2012 | 65509248592 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version China and TV function and Rear Professional entertainment center and Fond Entertainment Experience and Country-spec.ctrl Hong Kong/Macao 04142 |
L8AAA=Yes S601A=Yes S6FHA=No S6FRA=No S8LHA=Yes |
|||||||||
| 02 | TV module | DTMB | 1 | 03/2010 | 07/2013 | 65509288821 | Shop at ECS Tuning | |||
| For vehicles with National version Korea and National version China and TV function and Navigation system Professional and Rear-compartment entertainment and Rear Professional entertainment center and Rear entertainment Profess. with I-Drive |
L802A=No L8AAA=No S601A=Yes S609A=Yes S6FGA=No S6FHA=No S6FRA=No |
|||||||||
| 02 | TV module | 1 | 07/2012 | 65509248590 | Shop at ECS Tuning | |||||
| 03 | Bracket for TV module / video switch | 1 | 65159153139 | Shop at ECS Tuning | ||||||
| 04 | Hex bolt with washer | M6X16-U2-ZNS3 | 2 | 07119902913 | Shop at ECS Tuning | |||||
| 05 | Hex nut | M6-8-ZNFE SW | 1 | 07119904022 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Body nut | M6 | 1 | 07147133884 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Prestol-cage | M6 ZNS3 | 1 | 32411095443 | $1.48 | Shop at ECS Tuning | ||||
| 08 | Socket housing | 12 POL. | 1 | 61138384550 | $0.77 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | X | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | X | 61130056960 | Shop at ECS Tuning | |||||
| -- | Rep. kit for socket housing | 12+2 POL. | 1 | 61132471239 | Shop at ECS Tuning | |||||
| -- | Envelope f optical waveguide | 2POL. /SCHWARZ | 1 | 61138387214 | $1.83 | Shop at ECS Tuning | ||||
