CIC for BMW 3 Series E90 LCI 320d (2011)

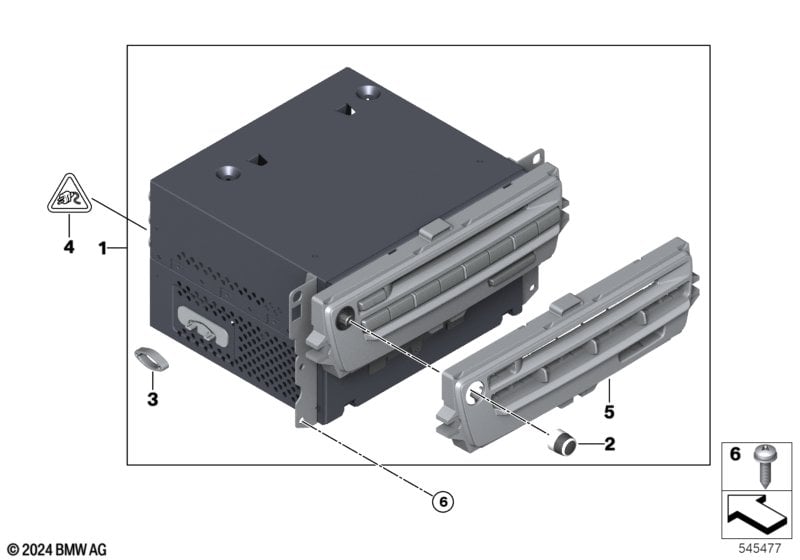

This CIC technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice! The system automatically requests the repair enable codes during the programming routine. As an alternative, it is possible to request the enable codes directly by selecting 'Sweeping Technology' in the 'FSC repair information request' menu at the ASAP Portal. A t t e n t i o n ! The defective used part must be forwarded through the exchange part return loop. It is essential to observe PARTS_051_09_14 product information bulletin! Attention! In the event that the head unit is stolen, it is necessary to consult with the insurance company to determine whether an exchange part may be installed and whether the associated flat rate deposit may be applied . If the insurance demands that a new part must be used, then the corresponding part number must be taken from the EPC . |
|||||||||
| For vehicles with On-board monitor with TV or Navigation system Professional |
S602A=Yes S609A=Yes |
|||||||||
| 01 | RP REMAN CIC | ECE | 1 | 09/2008 | 65129199905 | ENDED | Shop at ECS Tuning | |||
| 01 | RP Car Information Computer | ECE | 1 | 09/2008 | 65129283428 | Shop at ECS Tuning | ||||
| For vehicles with On-board monitor with TV and Navigation system Professional and DAB tuner |
S602A=Yes S609A=No S654A=Yes |
|||||||||
| 01 | RP REMAN, CIC / DAB | ECE | 1 | 09/2008 | 65129244112 | Shop at ECS Tuning | ||||
| For vehicles with National version Korea and On-board monitor with TV and Navigation system Professional |
L802A=Yes S602A=Yes S609A=No |
|||||||||
| 01 | Car Infotainment Computer | KOREA | 1 | 09/2008 | 65129283432 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and On-board monitor with TV and Navigation system Professional |
L807A=Yes S602A=Yes S609A=No |
|||||||||
| 01 | REMAN CIC | JAPAN | 1 | 09/2008 | 65129244121 | ENDED | Shop at ECS Tuning | |||
| 01 | CIC | JAPAN | 1 | 09/2008 | 65129283431 | Shop at ECS Tuning | ||||
| For vehicles with National version China and On-board monitor with TV and Navigation system Professional and Country-spec.ctrl Hong Kong/Macao 04142 and Country-specific equipment Taiwan 04825 |
L8AAA=Yes S602A=Yes S609A=No S8LHA=Yes S8LTA=Yes |
|||||||||
| 01 | Car Infotainment Computer | ASIEN | 1 | 09/2008 | 65129283438 | Shop at ECS Tuning | ||||
| 02 | Button | 1 | 65129114289 | $12.85 | Shop at ECS Tuning | |||||
| 03 | Alignment element | 2 | 65839165318 | Shop at ECS Tuning | ||||||
| 04 | Plug housing | 16 POL. | 1 | 61138384580 | $3.78 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | X | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | X | 61130056960 | Shop at ECS Tuning | |||||
| -- | Rep. kit for socket housing | 12 POL. | 1 | 61132471240 | Shop at ECS Tuning | |||||
| -- | Socket housing | 8 POL. | 1 | 61136905788 | $1.52 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 0,5-1,0 MM² | X | 61138364832 | $0.35 | Shop at ECS Tuning | ||||
| -- | Socket housing | 12 POL. | 2 | 61138384550 | $0.77 | Shop at ECS Tuning | ||||
| -- | Covering cap | 12 POL. | 1 | 61138387206 | $2.07 | Shop at ECS Tuning | ||||
| 05 | Front trim cover | ECE | 1 | 03/2010 | 65129270250 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 05 | Front trim cover | JAPAN | 1 | 03/2010 | 65129270252 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
