Radio Bavaria C for BMW 3 Series E30 320i (1992)

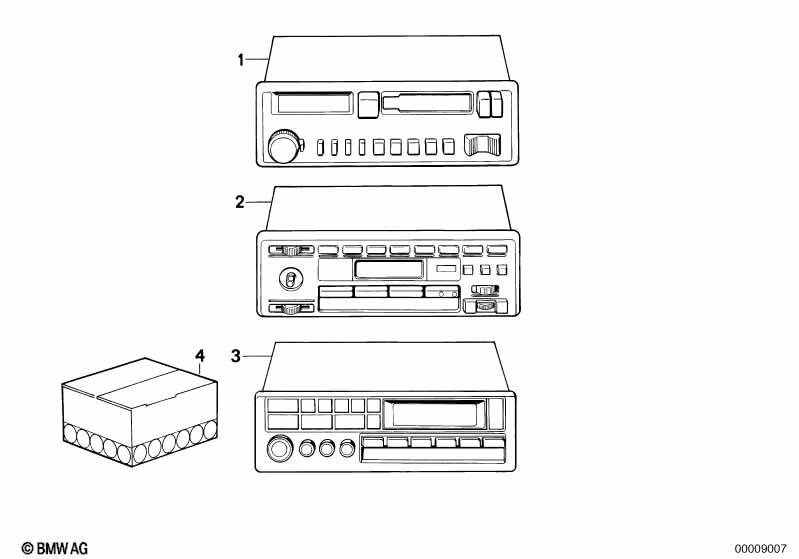

This Radio Bavaria C technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | RADIOS FROM 9/91 ONLY IN CONJUNCT.WITH Operating instructions BMW STEREO |
|||||||||
| 01 | Exch. radio BAVARIA CR DIGITAL | 1 | 65121375760 | ENDED | Shop at ECS Tuning | |||||
| 01 | Radio Bavaria Cr Digital | BMW | 1 | 65129057878 | $650.07 | ENDED | Shop at ECS Tuning | |||
| 01 | Radio Bavaria C Electronic | 4-OHM | 1 | 65129058624 | ENDED | Shop at ECS Tuning | ||||
| 01 | Radio Bavaria C Electronic | 4-OHM | 1 | 65129061101 | ENDED | Shop at ECS Tuning | ||||
| 01 | Radio Bavaria C Business | 1 | 65129061880 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Saudi Arabia version |
=Yes |
|||||||||
| 01 | Exch. radio BAVARIA EUROPA DIGITAL | 1 | 65121380627 | ENDED | Shop at ECS Tuning | |||||
| 01 | Radio Bavaria Europa Digital | 1 | 65129058502 | ENDED | Shop at ECS Tuning | |||||
| 01 | Radio Bavaria C Euro | 4-OHM | 1 | 65129058658 | ENDED | Shop at ECS Tuning | ||||
| 02 | Radio Bavaria C Exclusive | 4-OHM | 1 | 65129061102 | ENDED | Shop at ECS Tuning | ||||
| 03 | Exch. radio BAVARIA C EXCLUSIVE | 4-OHM | 1 | 65121379242 | ENDED | Shop at ECS Tuning | ||||
| 03 | Exch. radio BAVARIA C ELECTRONIC | 4-OHM | 1 | 65121388361 | ENDED | Shop at ECS Tuning | ||||
| 03 | Exch. radio BAVARIA C EXCLUSIVE | 4-OHM | 1 | 65121388363 | ENDED | Shop at ECS Tuning | ||||
| 03 | Radio Bavaria C Exclusive | 4-OHM | 1 | 65129061102 | ENDED | Shop at ECS Tuning | ||||
| 03 | Radio Bavaria C Business | 1 | 65129061880 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
