Adapter lead for BMW 3 Series E30 M3 (1990)

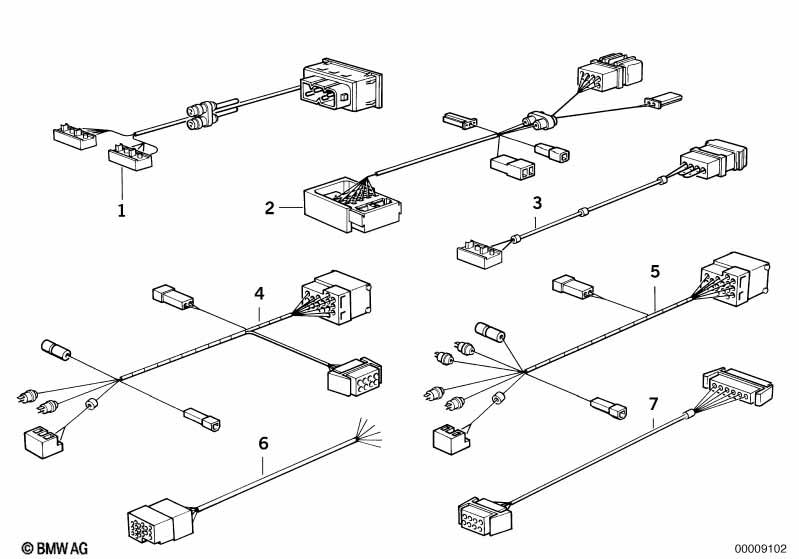

This Adapter lead technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO RADIO BAVARIA C ELECTRONIC RADIO BAVARIA C EXCLUSIVE |
||||||||||
| 01 | Adapter lead | 4-KANAL | 1 | 09/1986 | 65121379329 | $43.48 | ENDED | Shop at ECS Tuning | ||
| NOT SUITABLE FOR RADIO BAVARIA C ELECTRONIC RADIO BAVARIA C EXCLUSIVE |
||||||||||
| 01 | Adapter | 1 | 09/1986 | 82119416168 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO WIRING SET 2-CANAL RADIO 17-POLE |
||||||||||
| 02 | Adapter tubing f stereo and hifi system | 2-KANAL | 1 | 65128350192 | $56.15 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO WIRING SET 4-CANAL RADIO 17-POLE |
||||||||||
| 02 | Adapter tubing f stereo and hifi system | 4-KANAL | 1 | 65129410558 | $54.42 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO RADIO BAVARIA ELECTRONIC CD |
||||||||||
| 03 | Adapter lead | HIFI/4-KANAL | 1 | 61101388934 | $36.85 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO STEREO SYSTEM ONLY APPLIES TO RADIO BAVARIA C RADIO BAVARIA C REVERSE RADIO MEXICO ELECTRONIC CR SAFETY |
||||||||||
| 04 | Adapter tubing f stereo system | 2-KANAL | 1 | 65128350188 | $56.15 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sound System ONLY APPLIES TO RADIO BAVARIA C RADIO BAVARIA C REVERSE RADIO MEXICO ELECTRONIC CR SAFETY |
=Yes |
|||||||||
| 04 | Adapter tubing f hifi system | 2-KANAL | 1 | 65128350191 | $56.15 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO STEREO SYSTEM ONLY APPLIES TO RADIO BAVARIA C ELECTRONIC RADIO BAVARIA C EXCLUSIVE |
||||||||||
| 05 | Adapter tubing f stereo system | 4-KANAL | 1 | 65128350189 | $56.15 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sound System ONLY APPLIES TO RADIO BAVARIA C ELECTRONIC RADIO BAVARIA C EXCLUSIVE |
=Yes |
|||||||||
| 05 | Adapter tubing f hifi system | 4-KANAL | 1 | 65128350190 | $56.15 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sound System or Radio Bavaria Electronic CD |
=Yes =Yes |
|||||||||
| 05 | Adapter lead | 4-KANAL | 1 | 65128350007 | $57.17 | ENDED | Shop at ECS Tuning | |||
| 06 | Adapter tubing f stereo and hifi system | 1 | 61128350745 | $22.15 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
