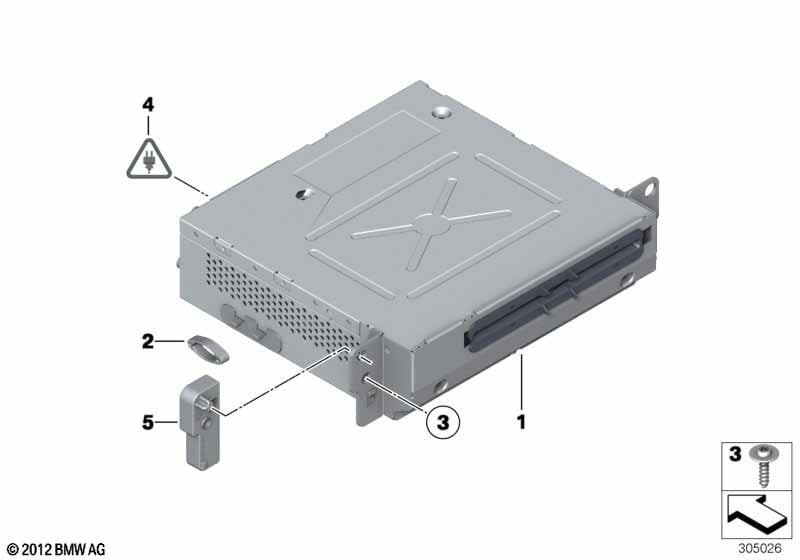

CHAMP 2 / CIC-Mid variant for BMW 7 Series F03 750LiS (2012)
This CHAMP 2 / CIC-Mid variant technical drawing provides a detailed breakdown of the assembly for the 7 Series F03 750LiS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice! The system automatically requests the repair enable codes during the programming routine. As an alternative, it is possible to request the enable codes directly by selecting 'Sweeping Technology' in the 'FSC repair information request' menu at the ASAP Portal. A t t e n t i o n ! The defective used part must be forwarded through the exchange part return loop. It is essential to observe PARTS_051_09_14 product information bulletin! Attention! In the event that the head unit is stolen, it is necessary to consult with the insurance company to determine whether an exchange part may be installed and whether the associated flat rate deposit may be applied . If the insurance demands that a new part must be used, then the corresponding part number must be taken from the EPC . |
|||||||||
| For vehicles with On-board monitor with TV and Navigation system Business and Navigation system Professional |
S602A=No S606A=No S609A=No |
|||||||||
| 01 | RP Car Information Computer - Mid | 1 | 09/2009 | 65129271933 | Shop at ECS Tuning | |||||
| 01 | RP REMAN Car Information Computer, Mid | MIC/ VID | 1 | 09/2009 | 65129221836 | Shop at ECS Tuning | ||||
| 02 | Alignment element | 2 | 65839165318 | Shop at ECS Tuning | ||||||
| 03 | Oval-head screw with washer | DELTA PT4X20 | 4 | 07149185673 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series F03 750LiS CHAMP 2 / CIC-Mid variant?
- This technical diagram illustrates the CHAMP 2 / CIC-Mid variant within the Audio, Navigation, Electronic Systems group for the 7 Series F03 750LiS produced during 2012. It provides a detailed exploded view of the components, identifying key parts such as the RP Car Information Computer - Mid (Part #65129271933).
- Which models use the hardware listed in this CHAMP 2 / CIC-Mid variant?
- The hardware and components featured in the CHAMP 2 / CIC-Mid variant are specific to the 7 Series F03 750LiS produced during 2012. These technical specifications ensure that parts like the RP Car Information Computer - Mid (65129271933) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the CHAMP 2 / CIC-Mid variant assembly?
- Each item in the CHAMP 2 / CIC-Mid variant corresponds to the numbered list below the illustration. For the 7 Series F03 750LiS, you can identify the RP Car Information Computer - Mid by locating its position on the schematic, which then links to the official BMW part number 65129271933 for the Audio, Navigation, Electronic Systems section.
