Radio accessories for BMW 7 Series E32 740iL (1994)

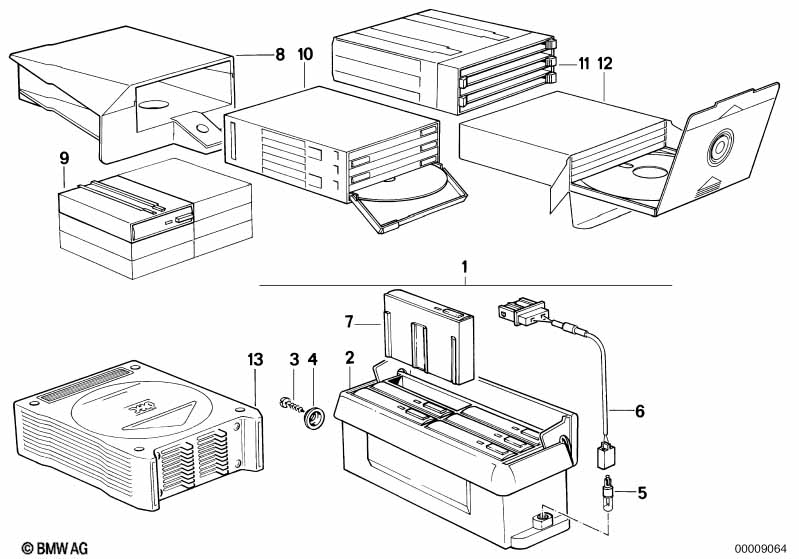

This Radio accessories technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Cassette box | SCHWARZ | 1 | 65141390075 | $97.98 | ENDED | Shop at ECS Tuning | |||
| 02 | Cassette box | KARMESINROT | 1 | 65141390080 | ENDED | Shop at ECS Tuning | ||||
| 02 | Cassette box | SILBERGRAU | 1 | 09/1990 | 65148350572 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Cassette box | ULTRAMARIN | 1 | 09/1990 | 65148350574 | ENDED | Shop at ECS Tuning | |||
| 02 | Cassette box | PERGAMENT | 1 | 09/1990 | 65148350576 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Cassette box | BRASIL | 1 | 09/1990 | 65148350578 | ENDED | Shop at ECS Tuning | |||
| 02 | Cassette box | SILBERGRAU HELL | 1 | 09/1990 | 65148350580 | ENDED | Shop at ECS Tuning | |||
| 02 | Cassette box | PERGAMENT HELL | 1 | 09/1990 | 65148350582 | ENDED | Shop at ECS Tuning | |||
| 03 | Fillister head self-tapping screw | ST4,2X16-ABW | 1 | 07119906749 | $0.11 | Shop at ECS Tuning | ||||
| 04 | Washer | 1 | 65141374485 | $0.10 | Shop at ECS Tuning | |||||
| 05 | Bulb | 12V 1,2W | X | 63217167000 | $3.00 | Shop at ECS Tuning | ||||
| 06 | Connection cable | 1 | 61121379863 | $23.40 | Shop at ECS Tuning | |||||
| 07 | Cassettedrawer | 6 | 65141374484 | $10.18 | Shop at ECS Tuning | |||||
| For vehicles with CD box and C box |
=Yes |
|||||||||
| 08 | CD-support glove box | 1 | 65141379321 | $14.25 | ENDED | Shop at ECS Tuning | ||||
| 09 | Profound cassette box | 1 | 65141390339 | $12.28 | ENDED | Shop at ECS Tuning | ||||
| 10 | CD box | 1 | 65141379400 | $116.95 | ENDED | Shop at ECS Tuning | ||||
| 11 | CD-box for cartridge | 1 | 65141390715 | ENDED | Shop at ECS Tuning | |||||
| 12 | CD-cartridge 5 pieces | BAV.ELECTR.CD | 1 | 65129061583 | $48.25 | ENDED | Shop at ECS Tuning | |||
| For vehicles with CD Changer |
=Yes |
|||||||||
| 13 | CD-magazine | CD-10 SELEKTION | 1 | 65128354113 | $90.95 | Shop at ECS Tuning | ||||
| 13 | CD-magazine BMW 6 CD changer P | 1 | 65128355885 | $42.80 | +core | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
