Radio adapter wiring for BMW 7 Series E32 730i (1994)

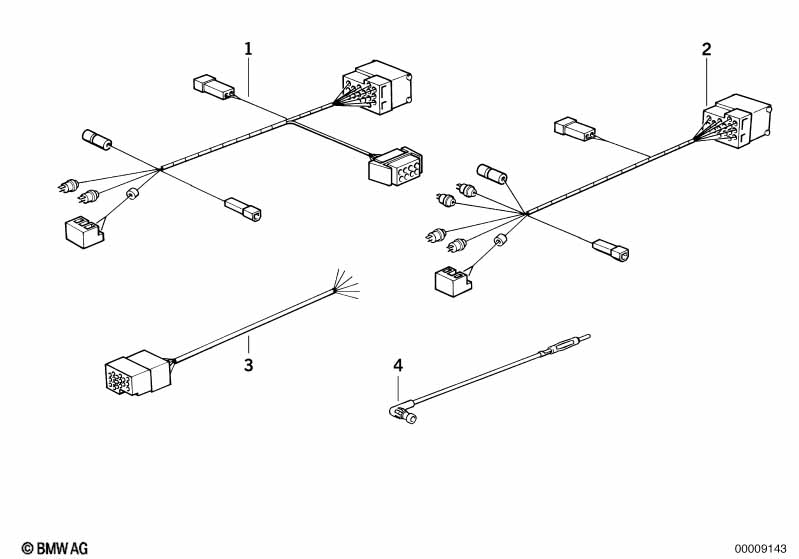

This Radio adapter wiring technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | MODIFICATION OF RADIOS WITH OLD PLUG SYSTEM (UP TO 9/89) INTO CARS WITH NEW 17-PIN PLUG CONNECT.SYST. . |
|||||||||
| ONLY APPLIES TO RADIO BAVARIA C RADIO BAVARIA C REVERSE RADIO MEXICO ELECTRONIC CR SAFETY |
||||||||||
| 01 | Adapter tubing f stereo system | 2-KANAL | 1 | 65128350188 | $56.15 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Adapter tubing f hifi system | 2-KANAL | 1 | 65128350191 | $56.15 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Antenna adapter tubing | 1 | 65121394202 | $14.22 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Adapter tubing f stereo system | 2-KANAL | 1 | 65128350188 | $56.15 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Adapter tubing f hifi system | 2-KANAL | 1 | 65128350191 | $56.15 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Antenna adapter tubing | 1 | 65121394202 | $14.22 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO RADIO BAVARIA C ELECTRONIC RADIO BAVARIA C EXCLUSIVE |
||||||||||
| 02 | Adapter tubing f stereo system | 4-KANAL | 1 | 65128350189 | $56.15 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 02 | Adapter tubing f hifi system | 4-KANAL | 1 | 65128350190 | $56.15 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Antenna adapter tubing | 1 | 65121394202 | $14.22 | Shop at ECS Tuning | |||||
| For vehicles with Radio Bavaria Electronic CD ONLY APPLIES TO HIFI SYSTEM |
=Yes |
|||||||||
| 02 | Adapter lead | 4-KANAL | 1 | 65128350007 | $57.17 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Antenna adapter tubing | 1 | 65121394202 | $14.22 | Shop at ECS Tuning | |||||
| NOT SUITABLE FOR ORIGINAL BMW RADIOS (ALL CABLE ENDS OPEN) |
||||||||||
| 03 | Adapter tubing f stereo and hifi system | 1 | 61128350745 | $22.15 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Antenna adapter tubing | 1 | 65121394202 | $14.22 | Shop at ECS Tuning | |||||
| 04 | Antenna adapter tubing | 1 | 65121394202 | $14.22 | Shop at ECS Tuning | |||||
