Parts f rear moulded headlng loudspeaker for BMW 5 Series F11 528i (2011)

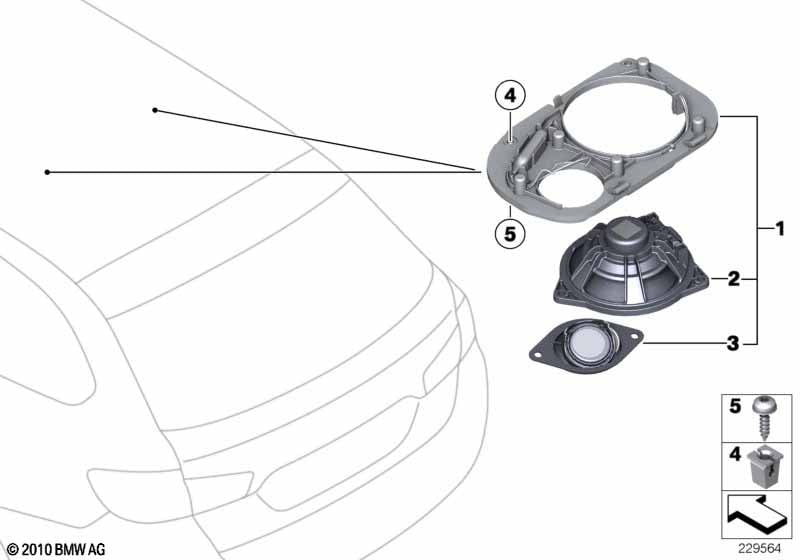

This Parts f rear moulded headlng loudspeaker technical drawing provides a detailed breakdown of the assembly for the 5 Series F11 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stereo loudspeaker carrier, right | 1 | 65139289638 | Shop at ECS Tuning | ||||||
| 01 | Stereo loudspeaker carrier, left | 1 | 65139289639 | Shop at ECS Tuning | ||||||
| For vehicles with HiFi speaker system |
S676A=Yes |
|||||||||
| 01 | HiFi loudspeaker carrier, left | 1 | 65139239145 | Shop at ECS Tuning | ||||||
| 01 | HiFi loudspeaker carrier, right | 1 | 65139239146 | Shop at ECS Tuning | ||||||
| For vehicles with Bang&Olufsen High End Surround Sound |
S6F2A=Yes |
|||||||||
| 01 | Speaker carrier, High End, left | 1 | 65139275434 | Shop at ECS Tuning | ||||||
| 01 | Speaker carrier, High End, right | 1 | 65139275435 | Shop at ECS Tuning | ||||||
| For vehicles with HiFi System Professional DSP |
S677A=Yes |
|||||||||
| 01 | Top-HiFi loudspeaker carrier, left | 1 | 07/2013 | 65139239147 | Shop at ECS Tuning | |||||
| 01 | Top-HiFi loudspeaker carrier, right | 1 | 07/2013 | 65139239148 | Shop at ECS Tuning | |||||
| 02 | Midrange speaker, stereo | 2 | 65138715683 | Shop at ECS Tuning | ||||||
| For vehicles with HiFi speaker system |
S676A=Yes |
|||||||||
| 02 | Midrange speaker for hifi system | 2 | 65139169689 | Shop at ECS Tuning | ||||||
| For vehicles with Bang&Olufsen High End Surround Sound |
S6F2A=Yes |
|||||||||
| 02 | Mid-range speaker High End | 2 | 65139224869 | Shop at ECS Tuning | ||||||
| For vehicles with HiFi System Professional DSP |
S677A=Yes |
|||||||||
| 02 | Midrange speaker Hifi/Top-Hifi | 2 | 07/2013 | 65139368383 | Shop at ECS Tuning | |||||
| For vehicles with HiFi speaker system |
S676A=Yes |
|||||||||
| 03 | Hifi-System Tweeter | 2 | 65139175696 | Shop at ECS Tuning | ||||||
| For vehicles with Bang&Olufsen High End Surround Sound |
S6F2A=Yes |
|||||||||
| 03 | Tweeter, high-end | 2 | 65139224868 | Shop at ECS Tuning | ||||||
| For vehicles with HiFi System Professional DSP |
S677A=Yes |
|||||||||
| 03 | Top-hifi loudspeaker tweeter | 2 | 07/2013 | 65139184795 | Shop at ECS Tuning | |||||
| 04 | Expanding nut | ST 4.8 | 4 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 05 | Combi. fillister head self-tapping screw | ST4, 8X16MM | 4 | 51419143799 | $0.22 | Shop at ECS Tuning | ||||
