Single parts f antenna-diversity for BMW 6 Series F12 LCI 640i (2018)

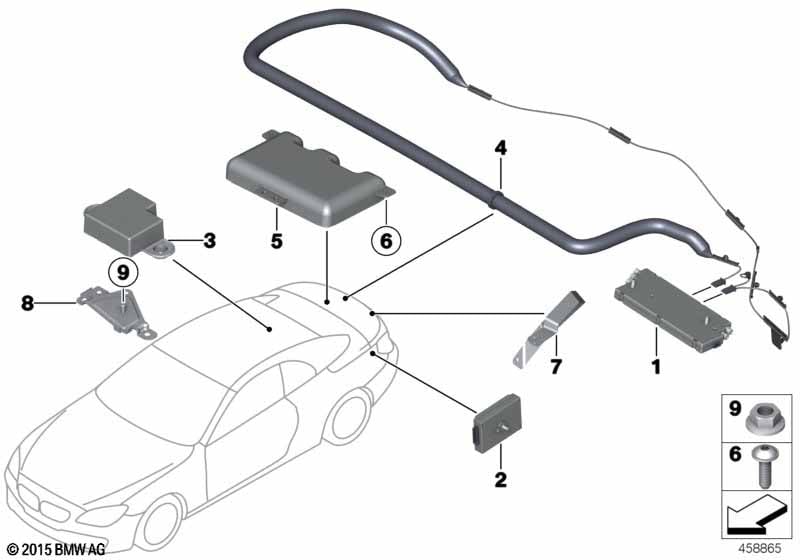

This Single parts f antenna-diversity technical drawing provides a detailed breakdown of the assembly for the 6 Series F12 LCI 640i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan and CIC-Zusteuerung |
L807A=Yes S6VAA=No |
|||||||||
| 01 | Antenna amplifier Diversity | 1 | 03/2013 | 65209257383 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and TV function and DAB tuner |
L807A=No S601A=Yes S654A=No |
|||||||||
| 01 | Antenna amplifier Diversity | 1 | 65209257381 | Shop at ECS Tuning | ||||||
| For vehicles with TV function and Navigation system Professional and DAB tuner |
S601A=Yes S609A=Yes S654A=Yes |
|||||||||
| 01 | Antenna amplifier Diversity | 1 | 65209257382 | Shop at ECS Tuning | ||||||
| For vehicles with TV function and Navigation system Professional and DAB tuner and Control for Infotainment |
S601A=No S609A=No S654A=Yes S6VBA=No |
|||||||||
| 01 | Antenna amplifier Diversity | 1 | 03/2013 | 65209257382 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and TV function and Navigation system Professional and DAB tuner and CIC-Zusteuerung |
L807A=No S601A=No S609A=Yes S654A=No S6VAA=No |
|||||||||
| 01 | Antenna amplifier Diversity | 1 | 03/2013 | 65209257380 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and TV function and Navigation system Professional and DAB tuner |
L802A=No L807A=No S601A=No S609A=No S654A=No |
|||||||||
| 01 | Antenna amplifier Diversity | 1 | 65209257380 | Shop at ECS Tuning | ||||||
| 02 | Suppression filter | LINKS | 1 | 65209227217 | Shop at ECS Tuning | |||||
| 02 | Suppression filter | RECHTS | 1 | 65209206936 | Shop at ECS Tuning | |||||
| For vehicles with Teleservices or Connection Bluetooth + USB devices incl. |
S6AEA=Yes S6NLA=Yes |
|||||||||
| 03 | Back-Up Antenna | 1 | 07/2012 | 65206935024 | $29.04 | Shop at ECS Tuning | ||||
| For vehicles with Control for Infotainment |
S6VBA=No |
|||||||||
| 04 | Antenna | AM/FM/TV | 1 | 04/2013 | 65209272435 | Shop at ECS Tuning | ||||
| For vehicles with DAB tuner |
S654A=Yes |
|||||||||
| 05 | Multiband telephone antenna left | 1 | 65209396830 | ENDED | Shop at ECS Tuning | |||||
| 05 | Multiband telephone antenna left | 1 | 03/2016 | 65209396830 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Navigation system Professional or Teleservices |
S609A=Yes S6AEA=Yes |
|||||||||
| 05 | Multiband telephone antenna right | 1 | 08/2012 | 65209396828 | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Professional and Teleservices |
S609A=Yes S6AEA=Yes |
|||||||||
| 05 | Multiband telephone antenna right | 1 | 03/2016 | 65209396828 | Shop at ECS Tuning | |||||
| For vehicles with Satellite tuner and Preparation BMW satellite radio and Teleservices |
S655A=No S693A=No S6AEA=Yes |
|||||||||
| 05 | Multiband telephone antenna | LTE | 1 | 65209396827 | Shop at ECS Tuning | |||||
| For vehicles with DAB tuner and Satellite tuner and Preparation BMW satellite radio and Teleservices |
S654A=No S655A=No S693A=No S6AEA=Yes |
|||||||||
| 05 | Multiband telephone antenna | LTE | 1 | 03/2016 | 65209396827 | Shop at ECS Tuning | ||||
| 06 | Torx-bolt for plastic material | ISA TS5X16 | 6 | 07149113701 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Antenna AM/DAB | 1 | 65209217162 | Shop at ECS Tuning | ||||||
| For vehicles with Teleservices or Connection Bluetooth + USB devices incl. |
S6AEA=Yes S6NLA=Yes |
|||||||||
| 08 | Holder emergency antenna | 1 | 65159367694 | Shop at ECS Tuning | ||||||
| 09 | Hex nut | M5 | 1 | 07119905710 | $2.83 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
