Electric parts airbag for BMW 6 Series F12 650i (2015)

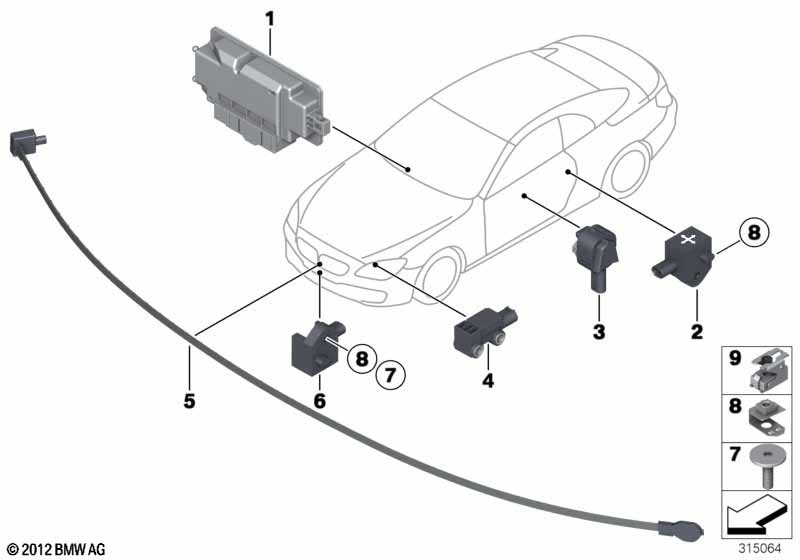

This Electric parts airbag technical drawing provides a detailed breakdown of the assembly for the 6 Series F12 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Control unit airbag | 1 | 65777911606 | Shop at ECS Tuning | ||||||
| For vehicles with Active pedestrian protection |
S8TFA=Yes |
|||||||||
| 01 | Control unit airbag | 1 | 65777911607 | Shop at ECS Tuning | ||||||
| For vehicles with Country-specific equipment Russia 10323 and Active pedestrian protection |
S8LRA=Yes S8TFA=Yes |
|||||||||
| 01 | Control unit airbag | RUSSIA | 1 | 11/2016 | 65776808580 | ENDED | Shop at ECS Tuning | |||
| 01 | Control unit airbag | 1 | 65776807634 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and Country-specific equipment Russia 10323 and Active pedestrian protection |
L802A=No S8LRA=Yes S8TFA=No |
|||||||||
| 01 | Control unit airbag | RUSSIA | 1 | 11/2016 | 65776808579 | ENDED | Shop at ECS Tuning | |||
| 01 | Control unit airbag | 1 | 65776807633 | ENDED | Shop at ECS Tuning | |||||
| 02 | Sensor, B-pillar | 2 | 65779224177 | Shop at ECS Tuning | ||||||
| 03 | Sensor door | 2 | 65779224178 | Shop at ECS Tuning | ||||||
| For vehicles with Active pedestrian protection |
S8TFA=Yes |
|||||||||
| 05 | Pedestrian protection sensor FOC | 1 | 06/2024 | 65765A7FAD3 | ENDED | Shop at ECS Tuning | ||||
| 05 | Sensor, pedestrian protection f-optic | 1 | 65769318776 | Shop at ECS Tuning | ||||||
| 06 | Sensor | 1 | 65779241032 | Shop at ECS Tuning | ||||||
| 07 | Countersunk screw | 1 | 07149184932 | Shop at ECS Tuning | ||||||
| 08 | Clip for sheet metal nut | M6 | 1 | 07149216177 | Shop at ECS Tuning | |||||
| 09 | Tilting captive nut | 1 | 07146972332 | $1.18 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
