Loudspeaker components later. trim panel for BMW 6 Series F13 LCI 640d (2017)

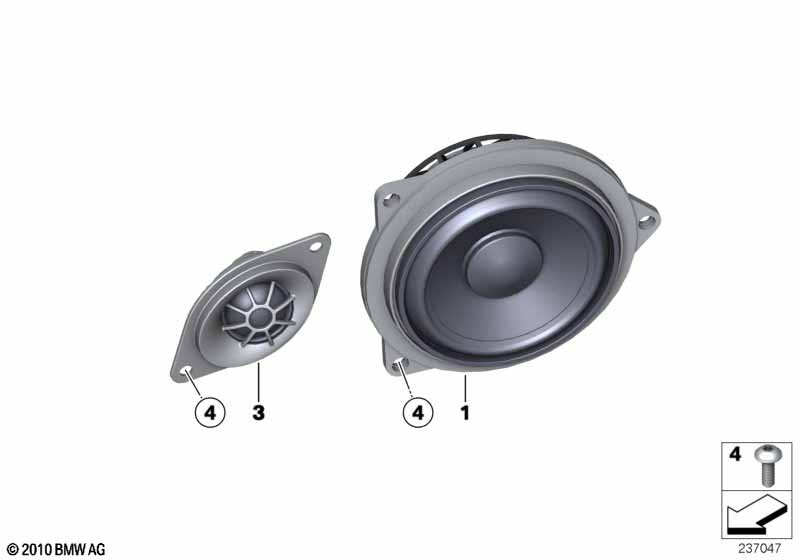

This Loudspeaker components later. trim panel technical drawing provides a detailed breakdown of the assembly for the 6 Series F13 LCI 640d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Harman/Kardon Surround Sound system |
S688A=Yes |
|||||||||
| 01 | Top-hifi MID-range loudspeaker | 2 | 07/2013 | 65139368386 | Shop at ECS Tuning | |||||
| For vehicles with Bang&Olufsen High End Surround Sound |
S6F2A=Yes |
|||||||||
| 01 | Mid-range speaker High End | 2 | 65139224870 | +core | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system and Bang&Olufsen High End Surround Sound |
S688A=No S6F2A=No |
|||||||||
| 01 | Midrange speaker for hifi system | 2 | 65139175697 | Shop at ECS Tuning | ||||||
| For vehicles with Harman/Kardon Surround Sound system |
S688A=Yes |
|||||||||
| 03 | Top-hifi loudspeaker tweeter | 2 | 07/2013 | 65139184795 | Shop at ECS Tuning | |||||
| For vehicles with Bang&Olufsen High End Surround Sound |
S6F2A=Yes |
|||||||||
| 03 | Tweeter, high-end | 2 | 65139224868 | Shop at ECS Tuning | ||||||
| 04 | Fillister head self-tapping screw | 5X14 | 4 | 07146973628 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
