TV module / bracket for BMW 3 Series F34 GT LCI 340i (2020)

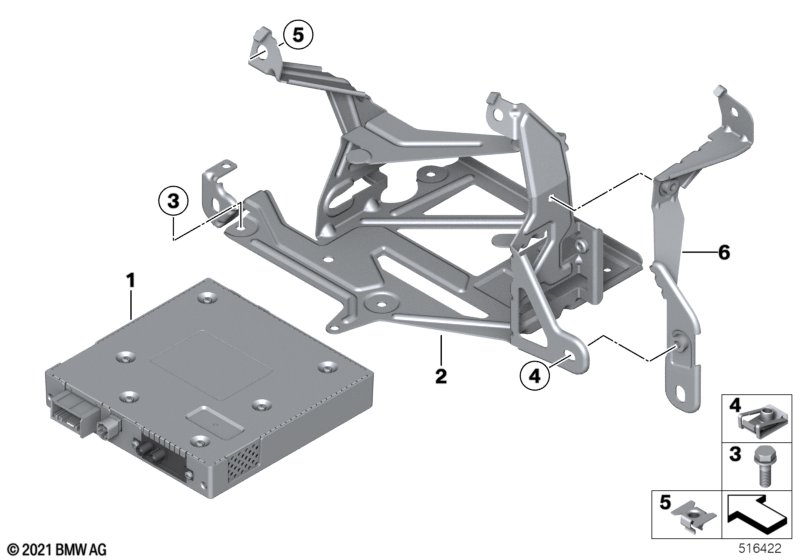

This TV module / bracket technical drawing provides a detailed breakdown of the assembly for the 3 Series F34 GT LCI 340i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with TV function and Country control for Brazil 00464 |
S601A=Yes S8LBA=Yes |
|||||||||
| 01 | TV module | BR | 1 | 65509366603 | Shop at ECS Tuning | |||||
| For vehicles with National version China and TV function and Country-spec.ctrl Hong Kong/Macao 04142 |
L8AAA=Yes S601A=Yes S8LHA=Yes |
|||||||||
| 01 | TV module | CN | 1 | 07/2013 | 65509366607 | Shop at ECS Tuning | ||||
| For vehicles with National version China and TV function and Country-spec.ctrl Hong Kong/Macao 04142 |
L8AAA=Yes S601A=Yes S8LHA=No |
|||||||||
| 01 | TV module | CN | 1 | 07/2013 | 65509366607 | Shop at ECS Tuning | ||||
| For vehicles with National version China and TV function and Country-spec.ctrl Hong Kong/Macao 04142 |
L8AAA=No S601A=Yes S8LHA=Yes |
|||||||||
| 01 | TV module | CN | 1 | 07/2013 | 65509366607 | Shop at ECS Tuning | ||||
| For vehicles with National version China and TV function and TV function, analog and Country control for Brazil 00464 and Country-spec.ctrl Hong Kong/Macao 04142 |
L8AAA=No S601A=Yes S6FSA=No S8LBA=No S8LHA=No |
|||||||||
| 01 | TV module | DVB-T2 | 1 | 07/2015 | 65508717279 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and National version China and TV function and Country control for Brazil 00464 and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=Yes L8AAA=Yes S601A=Yes S8LBA=Yes S8LHA=Yes |
|||||||||
| 01 | TV module | JP | 1 | 65509366605 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and National version China and TV function and Country control for Brazil 00464 and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=Yes L8AAA=Yes S601A=Yes S8LBA=Yes S8LHA=No |
|||||||||
| 01 | TV module | JP | 1 | 65509366605 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and National version China and TV function and Country control for Brazil 00464 and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=Yes L8AAA=Yes S601A=Yes S8LBA=No S8LHA=Yes |
|||||||||
| 01 | TV module | JP | 1 | 65509366605 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and National version China and TV function and Country control for Brazil 00464 and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=Yes L8AAA=Yes S601A=Yes S8LBA=No S8LHA=No |
|||||||||
| 01 | TV module | JP | 1 | 65509366605 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and National version China and TV function and Country control for Brazil 00464 and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=Yes L8AAA=Yes S601A=No S8LBA=Yes S8LHA=Yes |
|||||||||
| 01 | TV module | JP | 1 | 65509366605 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and National version China and TV function and Country control for Brazil 00464 and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=Yes L8AAA=Yes S601A=No S8LBA=Yes S8LHA=No |
|||||||||
| 01 | TV module | JP | 1 | 65509366605 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and National version China and TV function and Country control for Brazil 00464 and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=Yes L8AAA=Yes S601A=No S8LBA=No S8LHA=Yes |
|||||||||
| 01 | TV module | JP | 1 | 65509366605 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and National version China and TV function and Country control for Brazil 00464 and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=Yes L8AAA=Yes S601A=No S8LBA=No S8LHA=No |
|||||||||
| 01 | TV module | JP | 1 | 65509366605 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and National version China and TV function and Country control for Brazil 00464 and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=Yes L8AAA=No S601A=Yes S8LBA=Yes S8LHA=Yes |
|||||||||
| 01 | TV module | JP | 1 | 65509366605 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and National version China and TV function and Country control for Brazil 00464 and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=Yes L8AAA=No S601A=Yes S8LBA=Yes S8LHA=No |
|||||||||
| 01 | TV module | JP | 1 | 65509366605 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and National version China and TV function and Country control for Brazil 00464 and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=Yes L8AAA=No S601A=Yes S8LBA=No S8LHA=Yes |
|||||||||
| 01 | TV module | JP | 1 | 65509366605 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and National version China and TV function and Country control for Brazil 00464 and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=Yes L8AAA=No S601A=Yes S8LBA=No S8LHA=No |
|||||||||
| 01 | TV module | JP | 1 | 65509366605 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and National version China and TV function and Country control for Brazil 00464 and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=Yes L8AAA=No S601A=No S8LBA=Yes S8LHA=Yes |
|||||||||
| 01 | TV module | JP | 1 | 65509366605 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and National version China and TV function and Country control for Brazil 00464 and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=Yes L8AAA=No S601A=No S8LBA=Yes S8LHA=No |
|||||||||
| 01 | TV module | JP | 1 | 65509366605 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and National version China and TV function and Country control for Brazil 00464 and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=Yes L8AAA=No S601A=No S8LBA=No S8LHA=Yes |
|||||||||
| 01 | TV module | JP | 1 | 65509366605 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and National version China and TV function and Country control for Brazil 00464 and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=Yes L8AAA=No S601A=No S8LBA=No S8LHA=No |
|||||||||
| 01 | TV module | JP | 1 | 65509366605 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and National version China and TV function and Country control for Brazil 00464 and Country-spec.ctrl Hong Kong/Macao 04142 |
L807A=No L8AAA=No S601A=Yes S8LBA=No S8LHA=No |
|||||||||
| 01 | TV module | JP | 1 | 65509366605 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and National version China and TV function and TV function, analog and Country-spec.ctrl Hong Kong/Macao 04142 |
L802A=No L807A=No L8AAA=No S601A=Yes S6FSA=Yes S8LHA=No |
|||||||||
| 01 | TV module | 1 | 65509248590 | Shop at ECS Tuning | ||||||
| For vehicles with TV function |
S601A=Yes |
|||||||||
| 02 | Bracket, multimedia changer | 1 | 65159239057 | Shop at ECS Tuning | ||||||
| 03 | Hex bolt | M5X14-8.8-ZNNIV | 3 | 07119904269 | $0.36 | Shop at ECS Tuning | ||||
| 04 | C-clip nut | M6 | 3 | 07142452506 | Shop at ECS Tuning | |||||
| 05 | Prestol-cage | M6 ZNS3 | 1 | 32411095443 | $1.48 | Shop at ECS Tuning | ||||
| 06 | Adapter holder | MMC TV | 1 | 65159277892 | Shop at ECS Tuning | |||||
