Electr. compon. seat occupancy detection for BMW 5 Series G30 520i (2020)

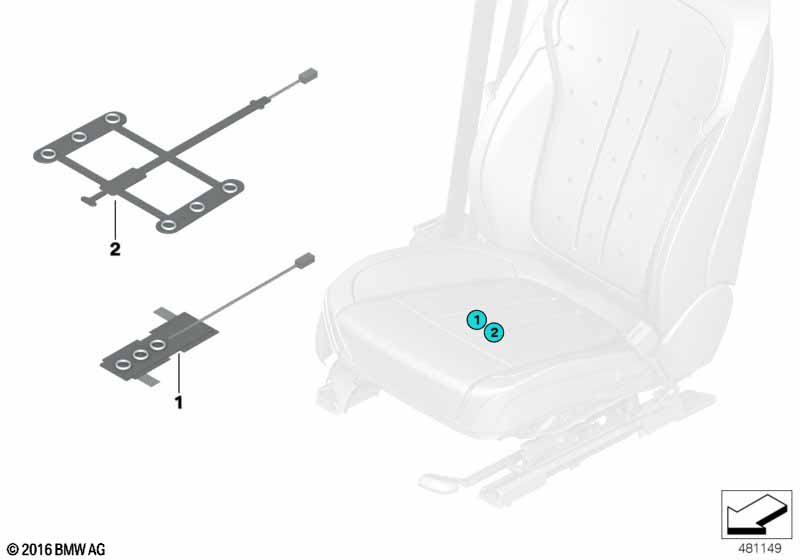

This Electr. compon. seat occupancy detection technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M multifunction seat and Massage function, driver / fr. passenger and Thiefproofing device |
S4MAA=No S4T7A=No S8TGA=No |
|||||||||
| 01 | Sensor mat f co-driver's seat identif. | 1 | 65779304007 | Shop at ECS Tuning | ||||||
| For vehicles with M multifunction seat and Massage function, driver / fr. passenger and Thiefproofing device |
S4MAA=Yes S4T7A=Yes S8TGA=Yes |
|||||||||
| 02 | Sensor mat f co-driver's seat identif. | 1 | 65779367481 | Shop at ECS Tuning | ||||||
