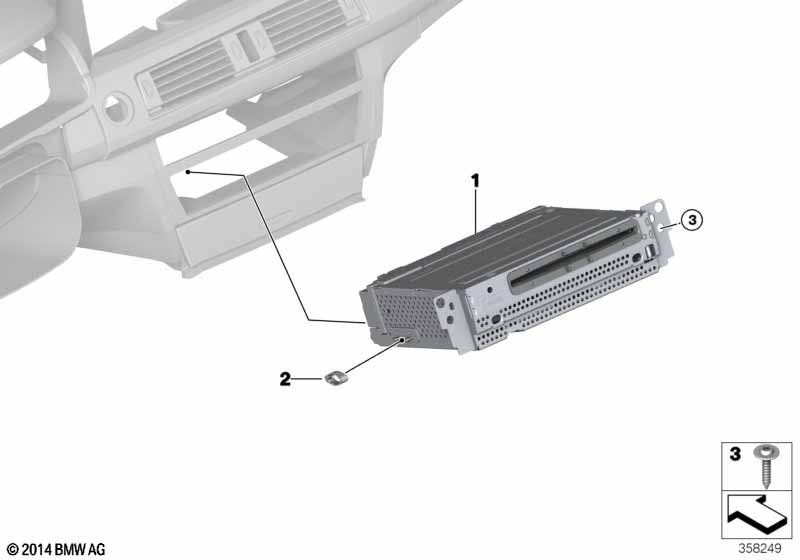

Head unit for basic media for BMW 7 Series F02 LCI 730Li (2015)
This Head unit for basic media technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 730Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | A t t e n t i o n ! The defective used part must be forwarded through the exchange part return loop. It is essential to observe PARTS_051_09_14 product information bulletin! ATTENTION! If the head units are stolen, please note that the flat fee deposit is incurred for RP Reman as well as for RP parts and this must be accounted for with the insurance. BMW recommends the Security Kit TNR 2 464 228 as theft protection. |
|||||||||
| For vehicles with TV function and Navigation system Professional and DAB tuner and Teleservices and Convenience phone, expanded Smartphone and Control for Infotainment |
S601A=No S609A=No S654A=No S6AEA=Yes S6NSA=Yes S6VBA=No |
|||||||||
| 01 | RP Head Unit Basic, media | ECE | 1 | 03/2014 | 65129874330 | Shop at ECS Tuning | ||||
| 01 | RP REMAN Head Unit Basic media | 1 | 03/2014 | 65128791780 | Shop at ECS Tuning | |||||
| For vehicles with TV function and Navigation system Professional and DAB tuner and Teleservices and Convenience phone, expanded Smartphone and Control for Infotainment |
S601A=No S609A=No S654A=No S6AEA=Yes S6NSA=No S6VBA=No |
|||||||||
| 01 | RP Head Unit Basic, media | ECE | 1 | 03/2014 | 65129874330 | Shop at ECS Tuning | ||||
| 01 | RP REMAN Head Unit Basic media | 1 | 03/2014 | 65128791780 | Shop at ECS Tuning | |||||
| For vehicles with TV function and Navigation system Professional and DAB tuner and Teleservices and Convenience phone, expanded Smartphone and Control for Infotainment |
S601A=No S609A=No S654A=No S6AEA=No S6NSA=Yes S6VBA=No |
|||||||||
| 01 | RP Head Unit Basic, media | ECE | 1 | 03/2014 | 65129874330 | Shop at ECS Tuning | ||||
| 01 | RP REMAN Head Unit Basic media | 1 | 03/2014 | 65128791780 | Shop at ECS Tuning | |||||
| For vehicles with TV function and Navigation system Professional and DAB tuner and Teleservices and Convenience phone, expanded Smartphone and Control for Infotainment |
S601A=No S609A=No S654A=No S6AEA=No S6NSA=No S6VBA=No |
|||||||||
| 01 | Head unit for basic media | 1 | 11/2018 | 65128717557 | ENDED | Shop at ECS Tuning | ||||
| 01 | RP Head Unit Basic, media | ECE | 1 | 65129874329 | Shop at ECS Tuning | |||||
| 01 | RP REMAN Head Unit Basic media | 1 | 03/2014 | 07/2017 | 65128791782 | ENDED | Shop at ECS Tuning | |||
| 02 | Guide | 2 | 65126929837 | $1.29 | Shop at ECS Tuning | |||||
| 03 | Oval-head screw with washer | DELTA PT4X20 | 2 | 07149185673 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series F02 LCI 730Li Head unit for basic media?
- This technical diagram illustrates the Head unit for basic media within the Audio, Navigation, Electronic Systems group for the 7 Series F02 LCI 730Li produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the RP Head Unit Basic, media (Part #65129874330).
- Which models use the hardware listed in this Head unit for basic media?
- The hardware and components featured in the Head unit for basic media are specific to the 7 Series F02 LCI 730Li produced during 2015. These technical specifications ensure that parts like the RP Head Unit Basic, media (65129874330) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Head unit for basic media assembly?
- Each item in the Head unit for basic media corresponds to the numbered list below the illustration. For the 7 Series F02 LCI 730Li, you can identify the RP Head Unit Basic, media by locating its position on the schematic, which then links to the official BMW part number 65129874330 for the Audio, Navigation, Electronic Systems section.
