Converter module for BMW 4 Series F33 LCI 430d (2020)

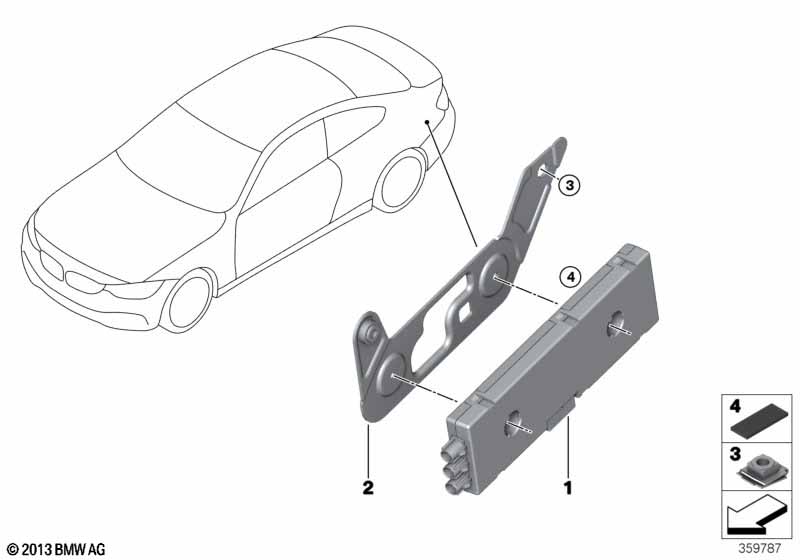

This Converter module technical drawing provides a detailed breakdown of the assembly for the 4 Series F33 LCI 430d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Navigation system Business and Control for Infotainment |
S606A=Yes S6VBA=Yes |
|||||||||
| 01 | Converter module | 1 | 65209315948 | Shop at ECS Tuning | ||||||
| 02 | Holder | 1 | 65159316265 | Shop at ECS Tuning | ||||||
| 03 | C-clip nut | M6 | 1 | 07142452506 | Shop at ECS Tuning | |||||
| 04 | Felt strip, self-adhesive | 130X40X3 MM | 1 | 54347248700 | $1.38 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series F33 LCI 430d Converter module?
- This technical diagram illustrates the Converter module within the Audio, Navigation, Electronic Systems group for the 4 Series F33 LCI 430d produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Converter module (Part #65209315948).
- Which models use the hardware listed in this Converter module?
- The hardware and components featured in the Converter module are specific to the 4 Series F33 LCI 430d produced during 2020. These technical specifications ensure that parts like the Converter module (65209315948) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Converter module assembly?
- Each item in the Converter module corresponds to the numbered list below the illustration. For the 4 Series F33 LCI 430d, you can identify the Converter module by locating its position on the schematic, which then links to the official BMW part number 65209315948 for the Audio, Navigation, Electronic Systems section.
