Electric parts airbag for BMW 4 Series F33 LCI 425d (2016)

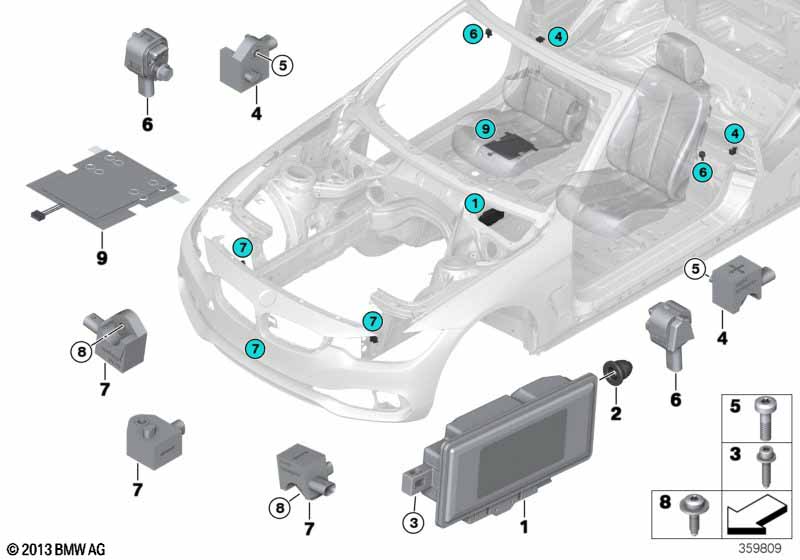

This Electric parts airbag technical drawing provides a detailed breakdown of the assembly for the 4 Series F33 LCI 425d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Control unit airbag | 1 | 65779348726 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and National version Australia and National version China |
L802A=No L807A=No L810A=No L8AAA=No |
|||||||||
| 01 | Control unit airbag | 1 | 65779461918 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea or National version japan or National version Australia or National version China |
L802A=Yes L807A=Yes L810A=Yes L8AAA=Yes |
|||||||||
| 01 | Control unit airbag | 1 | 65779461919 | Shop at ECS Tuning | ||||||
| 02 | Snap-lock coupling | 2 | 46637691016 | $1.54 | Shop at ECS Tuning | |||||
| 03 | Sheet metal screw | ST4,2X32 | 1 | 07119907848 | Shop at ECS Tuning | |||||
| 04 | Sensor, B-pillar | 2 | 65779234989 | Shop at ECS Tuning | ||||||
| 05 | Countersunk screw | M6X20-8.8-ZNNIV | 2 | 07119907517 | Shop at ECS Tuning | |||||
| 06 | Sensor door | 2 | 65779217711 | +core | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific and Sports seat |
S230A=Yes S481A=Yes |
|||||||||
| 09 | Sensor mat f co-driver's seat identif. | 1 | 05/2014 | 65779354629 | Shop at ECS Tuning | |||||
| For vehicles with Extra package, EU-specific and Sports seat |
S230A=Yes S481A=No |
|||||||||
| 09 | Sensor mat f co-driver's seat identif. | 1 | 65779354628 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
